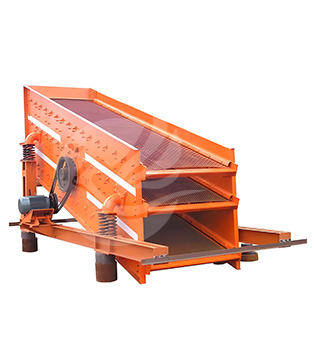

Circular Vibrating Screen:uses circular motion for efficient screening, grading, and dewatering.

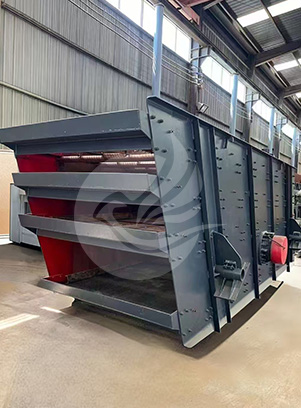

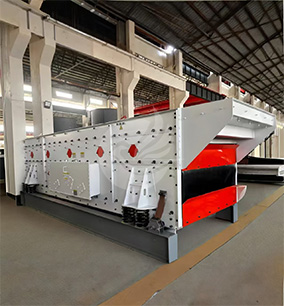

Triple-Shaft Horizontal Vibrating Screen: Its characteristic is the use of a triple-shaft vibrator, which generates composite vibrations in horizontal, vertical, and inclined directions, thereby improving screening efficiency and accuracy.

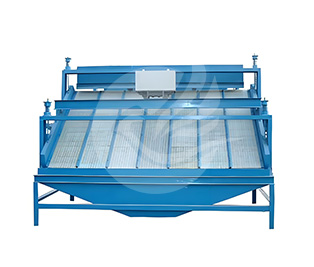

High-Frequency Screen: utilizes high-frequency vibration for fine screening and handling difficult-to-screen materials.

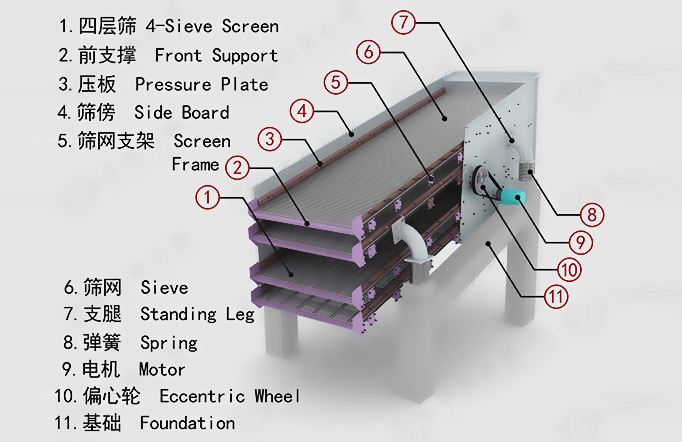

01Vibrator: it usually adopts single-shaft or dual-shaft vibrator, which generates vibration through motor drive.
02Screen mesh: the material is screened through the screen mesh, and the mesh size can be selected according to requirements.
01Vibrator: The triple-shaft vibrator consists of three eccentric shafts, which generate vibration through motor drive.
02Screen Mesh: Materials are screened through the screen mesh, and the mesh size can be selected according to requirements.

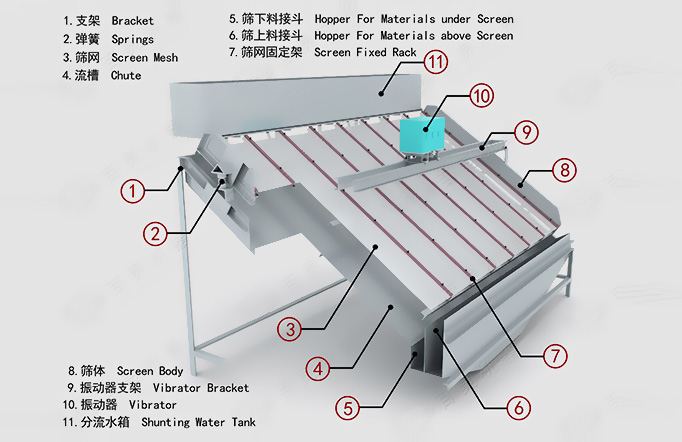

01High-Frequency Vibration: Rapid material movement driven by high-frequency vibrators.

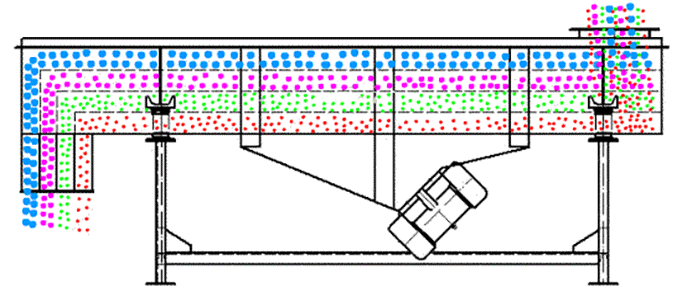

02Screening Process: Fine particles pass through the mesh, while coarse particles move forward and are discharged.
The material moves quickly on the screen surface to improve the screening efficiency.
Equipped with multi-layer screen to realize multi-level screening.
Optimized design, smooth operation, low noise.
Simple structure, easy maintenance.
1.Mining: used for screening and grading ores.
2.Chemical industry: used for screening chemical raw materials.
3.Building materials: used for screening construction materials such as sand, gravel and cement.
4.Food industry: used for screening and grading food raw materials.
|
Model |
Screen Specification（mm） |
Layers |
Mesh Size（mm） |
Max. Feed Particle Size（mm） |
Production Capacity（t/h） |
Motor Power（kw） |
Vibration Frenquency（r/min） |
Double Amplitude（mm） |
|
2YK1237 |
3700*1200 |
2 |
3-50 |
200 |
10-120 |
11 |
870 |
5-9 |
|
3YK1237 |
3700*1200 |
3 |
3-50 |
200 |
10-120 |
11 |
870 |
5-9 |
|
2YK1548 |
4800*1500 |
2 |
3-100 |
400 |
30-275 |
15 |
870 |
5-9 |
|
3YK1548 |
4800*1500 |
3 |
3-100 |
400 |
30-275 |
15 |
870 |
5-9 |
|
2YK1848 |
4800*1800 |
2 |
3-100 |
400 |
56-330 |
18.5 |
870 |
5-9 |
|
3YK1848 |
4800*1800 |
3 |
3-100 |
400 |
56-330 |
18.5 |
870 |
5-9 |
|
2YK1860 |
6000*1800 |
2 |
3-100 |
400 |
65-586 |
22 |
870 |
5-9 |
|
3YK1860 |
6000*1800 |
3 |
3-100 |
400 |
65-586 |
22-30 |
870 |
5-9 |
|
2YK2160 |
6000*2100 |
2 |
3-100 |
400 |
81-720 |
30 |
730 |
5-9 |
|
3YK2160 |
6000*2100 |
3 |
3-100 |
400 |
81-720 |
30-37 |
730 |
5-9 |
|
2YK2460 |
6000*2400 |
2 |
3-150 |
400 |
100-810 |
37 |
770 |
5-9 |
|
3YK2460 |
6000*2400 |
3 |
3-150 |
400 |
100-810 |
378 |
770 |
5-9 |
|
2YK2660 |
6000*2600 |
2 |
3-150 |
400 |
200-810 |
45 |
770 |
5-9 |
|
3YK2660 |
6000*2600 |
3 |
3-150 |
400 |
200-810 |
45 |
770 |
5-9 |
|
2YK3070 |
7000*3000 |
2 |
3-150 |
400 |
300-810 |
55 |
750 |
5-9 |
|
3YK3070 |
7000*3000 |
3 |
3-150 |
400 |
300-810 |
55 |
750 |
5-9 |
| Model | Max. Feed Particle Size（mm） | Double Amplitude（mm） | Vibration Frequency（r/min.） | Production Capacity（t/h） | Motor Power（kw） |
| WZS-5 | 150 | 14-18 | 645-875 | 280-350 | 30 |
| WZS-6 | 14-18 | 350-500 | 37 | ||
| WZS-10 | 14-18 | 500-800 | 45 |
|
Model |
Production Capacity （t/h） |
Power （kw） |
|
GPS-4 |
15-25 |
0.72 |
|
GPS-5 |
20-30 |
1.1 |
|
GPS-6 |
24-36 |
1.5 |
|
GPS-8 |
32-48 |
2.2 |
