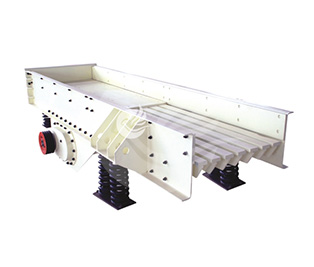

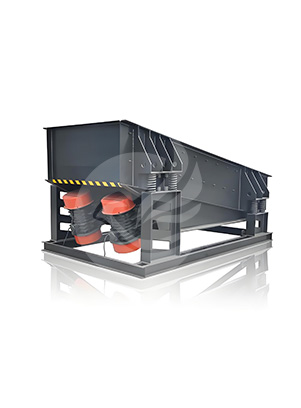

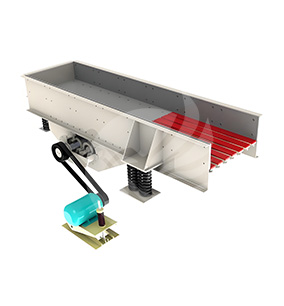

ZSW series vibrating feeder is a type of equipment that utilizes the vibration principle to achieve uniform and continuous feeding, which is especially suitable for conveying and feeding materials before coarse crushing in sand and gravel production line.

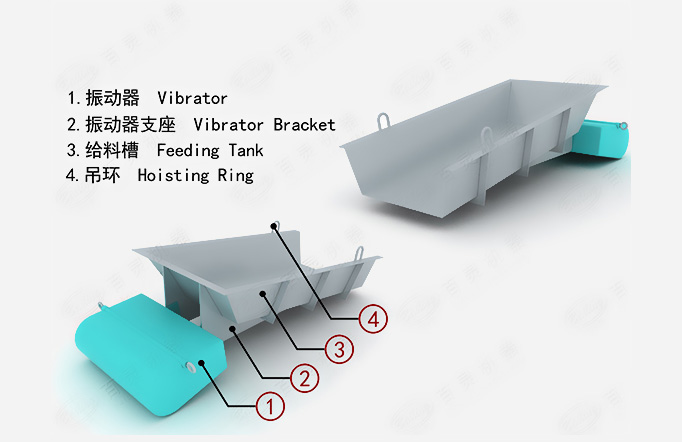

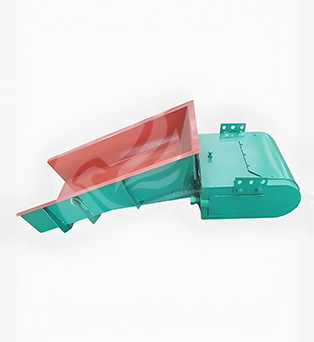

Electromagnetic vibrating feeder is a type of equipment that utilizes electromagnetic force to drive the vibrator for uniform and continuous feeding.

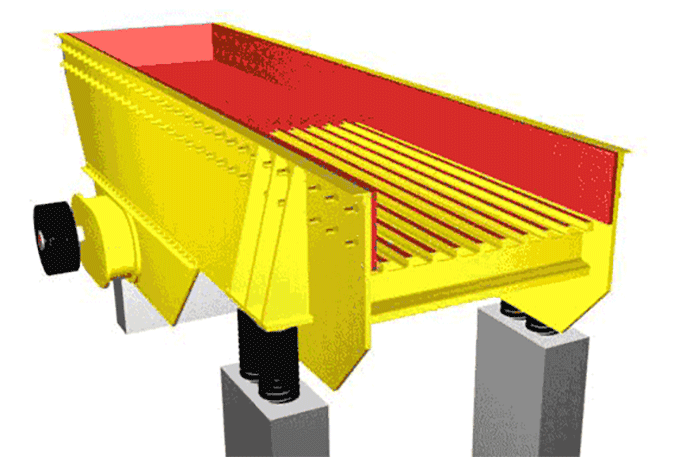

01 Vibration: The vibration motor or exciter generates an excitation force, causing the feeding trough to produce periodic vibration.
02Feeding: Under the action of vibration, materials move forward along the feeding trough in a jumping motion, achieving uniform and continuous feeding.
01 Electromagnetic Drive: The electromagnetic exciter generates periodic electromagnetic force, driving the feeding trough to vibrate.
02Feeding: Under the action of vibration, materials move forward along the feeding trough in a jumping motion, achieving uniform and continuous feeding.
The vibration feeding method makes the materials evenly distributed and avoids clogging.
The feeding speed and feeding volume can be precisely adjusted through the controller.
Low energy consumption, no pollution, in line with environmental requirements.
Easy maintenance, long service life.
Suitable for quantitative feeding of granular, powdered materials .

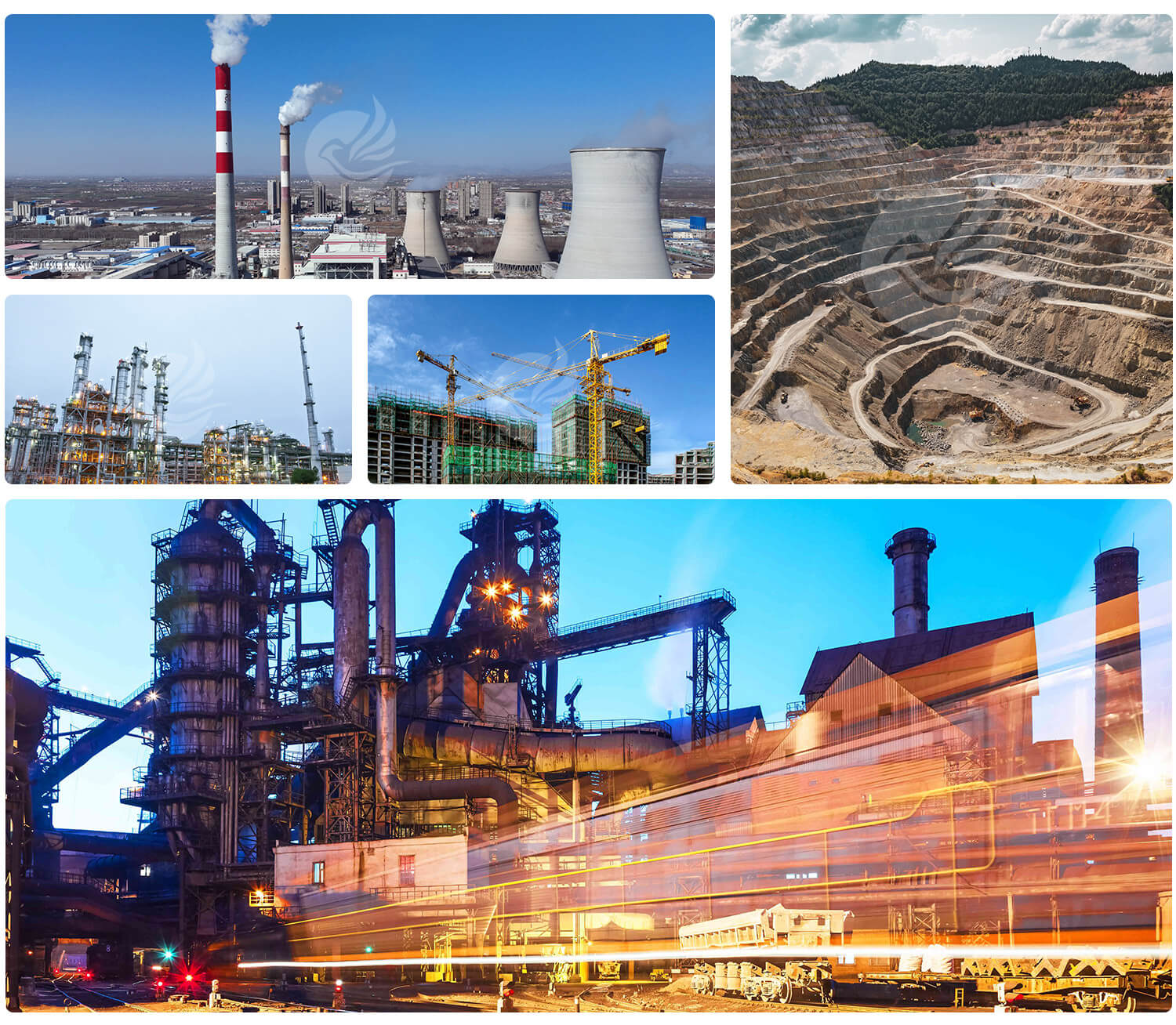

1. Mining: used for conveying and feeding materials such as ore and coal.
2. Metallurgy: used for the transportation of sintered ore, coke and other materials.
3. Building materials: used for conveying limestone, cement clinker and other materials.
4. Chemical industry: used for conveying fertilizer, salt and other materials.
5. Electric power: used for coal conveying in coal-fired power plants.
|
Model |
Trough Size （mm） |
Max. Feed Particle Size（mm） |
Production Capacity (t/h) |
Motor Power （kw） |
Weight （T） |
Overall Dimension （mm） |
|
ZSW-300*90 |
3000*900 |
400 |
80-120 |
7.5 |
3.9 |
3110*1800*1600 |
|
ZSW-380*96 |
3800*960 |
500 |
120-210 |
11 |
4.2 |
3850*1950*1630 |
|
ZSW-420*110 |
4200*1100 |
650 |
180-400 |
15 |
4.8 |
4400*2050*1660 |
|
ZSW-490*110 |
4900*1100 |
650 |
280-500 |
15-18.5 |
5.6 |
5200*2050*1700 |
|
ZSW-490*130 |
4900*1300 |
750 |
300-550 |
22 |
6.7 |
5200*2350*1750 |
|
ZSW-600*130 |
6000*1300 |
800 |
400-750 |
30 |
8.2 |
6160*2580*2293 |
|
ZSW-600*150 |
6000*1500 |
900 |
500-900 |
37 |
10.3 |
6160*2919*2293 |
|
Model |
Feeding Capacity （t/h） |
Max. Feed Paticle Size（mm） |
Power （w） |
Voltage （V） |
Current （A） |
Double Amplitude（mm） |
Clearance（mm） |
Weight （kg） |
|
GZ1 |
5 |
50 |
60 |
220 |
≤1 |
1.75 |
1.9-2.2 |
75 |
|
GZ2 |
10 |
60 |
150 |
220 |
≤2.3 |
1.75 |
1.9-2.2 |
155 |
|
GZ3 |
25 |
70 |
200 |
220 |
≤3.8 |
1.75 |
1.9-2.2 |
225 |
|
GZ4 |
50 |
100 |
450 |
220 |
≤7 |
1.75 |
1.9-2.2 |
460 |
|
GZ5 |
100 |
150 |
650 |
220 |
≤10.6 |
1.75 |
1.9-2.2 |
656 |
