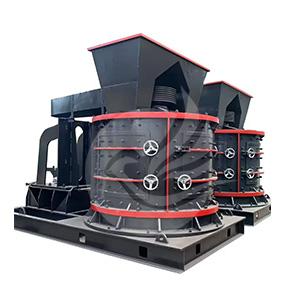

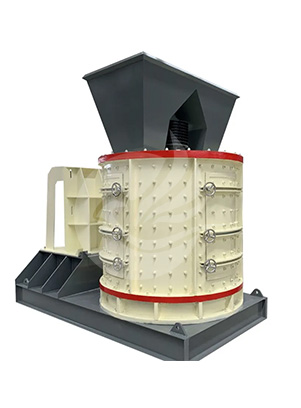

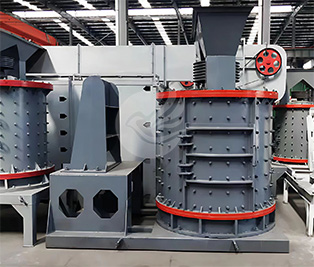

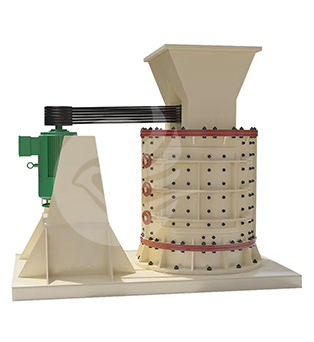

Vertical shaft sand making machine is a highly efficient crushing equipment, which is mainly used for crushing and sand making of medium-high hardness materials.

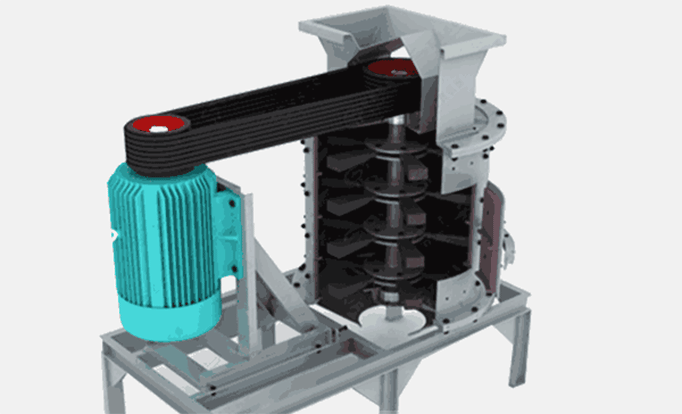

It adopts vertical shaft structure, combined with the impact crushing principle of hammer, and realizes automatic control through CNC system.
It utilizes impact crushing with hammers, high efficiency, suitable for medium-high hardness materials.
The discharged material has uniform particle size and good shape.
Equipped with a CNC system for automated adjustment, ensuring simple operation.
The plate hammer and liner plate are made of high wear-resistant materials, with long service life.
Low energy consumption, less noise and dust.
1.Mining industry:used for crushing various ores to produce high-quality sand and gravel materials.
2.Construction industry:used to produce construction sand and concrete aggregate.
3.Cement industry:used for crushing raw materials to produce sand and gravel materials required for cement.
4.Glass industry:used to crush quartz sand and produce high-purity sand and gravel materials for glass manufacturing.
5.Metallurgical industry:used to crush metallurgical slag and produce recycled sand and gravel.
6.Refractory industry:used for crushing refractory raw materials, producing refractory bricks, refractory castables and so on.
|
Model |
Cylinder Diameter（mm） |
Production Capacity （t/h） |
Feed Particle Size (mm) |
Discharge Particle Size (mm) |
Motor Power (kw) |
Overall Dimension (mm) |
|
PFL800 |
Ø800 |
10-20 |
＜80(30mm or less is optimal) |
＜5 80-95% |
30-37 |
2100*1200*1700 |
|
PFL1000 |
Ø1000 |
20-40 |
＜120(30mm or less is optimal) |
＜5 80-95% |
45-55 |
2600*1400*1900 |
|
PFL1250 |
Ø1250 |
30-60 |
＜150(30mm or less is optimal) |
＜5 80-95% |
75-90 |
2600*1500*2500 |
|
PFL1500 |
Ø1500 |
50-100 |
＜180(50mm or less is optimal) |
＜5 80-95% |
132-160 |
3100*1900*3100 |
|
PFL1750 |
Ø1750 |
80-150 |
＜180(50mm or less is optimal) |
＜5 80-95% |
185-200 |
4000*2100*3400 |
|
PFL2000 |
Ø2000 |
100-180 |
＜190(50mm or less is optimal) |
＜5 80-95% |
220-250 |
4300*2300*3700 |
