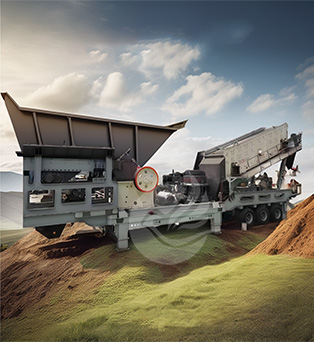

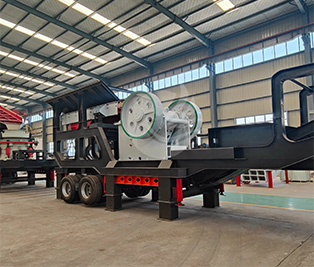

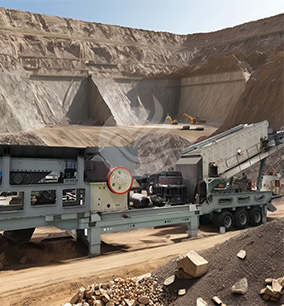

Tyre Mobile Jaw Crushing Station

The tyre-mounted mobile jaw crushing plant is an integrated mobile crushing unit that combines jaw crusher, vibrating feeder, belt conveyor and electrical control system.

It features a tyre-mounted travel mechanism, offering advantages such as flexibility, high efficiency and low transportation costs,which makes it ideal for on-site crushing operations in industries such as mining, construction waste processing, and road construction.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

Tyre Mobile Jaw Crushing Station

01 Feeding system: Materials are fed into the vibrating feeder via a loader or excavator, where they are preliminarily screened to remove soil and fine particles.

02 Crushing process: Materials enter the jaw crusher, where they are crushed through the squeezing action of the movable jaw and fixed jaw.

03 Size-classified Output: The crushed material is discharged via the main belt conveyor. Some models are equipped with screening devices to achieve size-classified output (e.g., 0-30 mm, 30-60 mm, etc.)

04 Mobility: The system uses a tire-mounted travel mechanism, enabling it to be towed by a tractor or move short distances independently, adapting to various job site requirements.

Performance Advantages

High Mobility

Tyre-mounted chassis, no fixed foundation required, flexible relocation, suitable for projects that frequently change work sites.
Integrated Design

Combines feeding, crushing, and conveying into one unit, reducing equipment installation time and improving production efficiency.
High Adaptability

Can crush high-hardness rocks (compressive strength ≤ 320 MPa), such as granite and basalt.

Adjustable output particle size (typically 60–300 mm) to meet various requirements.
Energy-efficient and Environmentally Friendly

Equipped with high-efficiency motors or diesel engines for low energy consumption.

Features a spray dust suppression system to minimize dust pollution.
Automation Control

PLC intelligent control system enables real-time monitoring of equipment operation status and automatic fault alerts.

Application Areas

1. Mining industry: used for crushing ores in mining, which is convenient for subsequent processing and transportation.

2. Highway and railway construction:used to crush roadbed materials to provide foundation materials for highway and railway construction.

3. Water conservancy project:used for crushing large stone materials, which is used in dam,riverbank protection and other projects.

4. Metallurgical industry:used to crush metallurgical slag, which is convenient for subsequent metal extraction and reuse.

5. Environmental protection industry: used to process solid waste to realize the resource recycling.

6. Energy industry:In coal, oil and other energy resource extraction,it is used to crush large materials, which is easy to transport and processing.

Technical Parameters

Tyre Mobile Jaw Crushing Station

Model	Jaw Crusher	Feed Opening Size (mm)	Output Adjustment Range (mm)	Production Capacity (t/h)	Vibrating Feeder	Belt conveyor	Overall size
MH600	PE400*600	400*600	40-100	15-60	ZSW6520	B650*6m	860025203770mm
MH750	PE500*750	500*750	50-100	40-110	ZSW8530	B800*7m	96002503500mm
MH900	PE600*900	600*900	65-180	90-180	ZSW9638	B1000*8m	1109737593500mm
MH1060	PE750*1060	750*1060	80-180	110-380	ZSW1142	B1000*11m	1330029004440mm
MH1200	PE900*1200	900*1200	95-225	220-450	ZSW1349	B1200*13m	1580029004500mm
MH1300PEX	PEX300*1300	300*1300	20-90	30-105	ZSW8530	B1000*7m	946027433988mm
