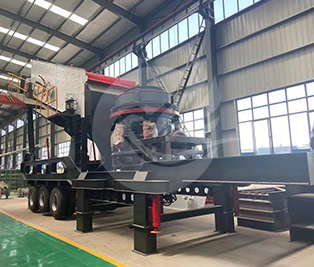

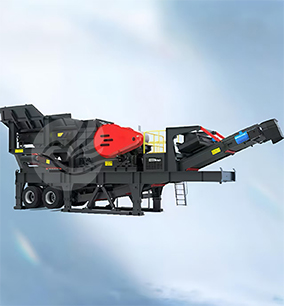

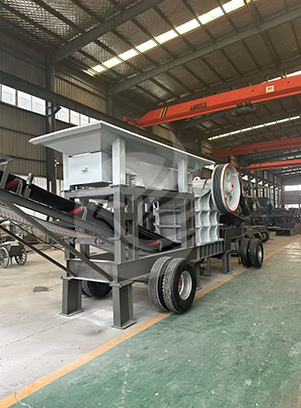

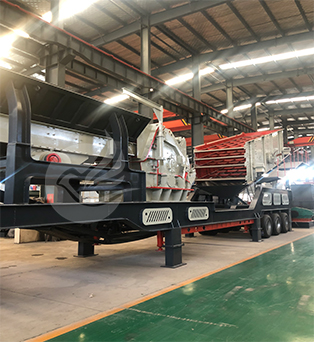

Tire mobile crushing station is a type of equipment integrating feeding, crushing, screening, conveying and other functions.
It is especially suitable for projects that require frequent relocation, and it has become an essential equipment in modern crushing and screening operation by virtue of its flexibility, high efficiency, environmental protection and other advantages.
Equipped with a tire chassis, it can move quickly between different worksites, especially suitable for projects with frequent relocation.
Integrates crusher, vibrating screen, conveyor and other equipment, reducing installation time and improving work efficiency.

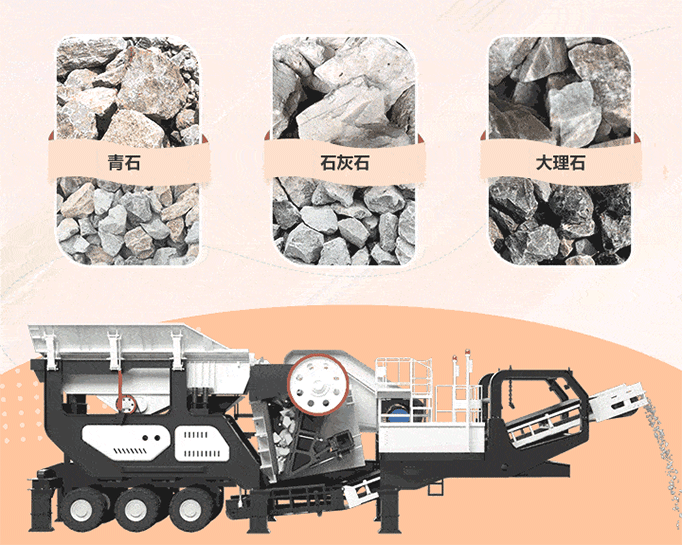

It can handle various materials, such as rocks, ores, construction waste etc
High automation, simple operation interface, low labor costs.
Equipped with noise reduction and dust removal devices and also features energy-saving functions.
1. Mining industry: used for crushing ores in mining, which is convenient for subsequent processing and transportation.
2. Highway and railway construction:used to crush roadbed materials to provide foundation materials for highway and railway construction.
3. Water conservancy project:used for crushing large stone materials, which is used in dam,riverbank protection and other projects.
4. Metallurgical industry:used to crush metallurgical slag, which is convenient for subsequent metal extraction and reuse.
5. Environmental protection industry: used to process solid waste to realize the resource recycling.
6. Energy industry:In coal, oil and other energy resource extraction,it is used to crush large materials, which is easy to transport and processing.
|
Model |
C-PE69 |
C-PE750 |
C-CX96 |
C-CX110 |
C-PCZ1310 |
C-PCZ1512 |
C-LF150 |
C-LF250 |
|
Feed Particle Size (mm) |
≤500 |
≤580 |
≤460 |
≤730 |
≤600 |
≤750 |
≤600 |
≤800 |
|
Production Capacity (t/h) |
50-160 |
155-580 |
120-455 |
190-625 |
100-160 |
250-320 |
100-200 |
200-400 |
|
Model |
Z-PF1214 |
Z-PF1315 |
Z-CS110 |
Z-CS160 |
Z-CH430 |
Z-CH440 |
Z-HP300 |
Z-HP400 |
|
Feed Particle Size (mm) |
≤300 |
≤350 |
≤156 |
≤188 |
≤90 |
≤110 |
≤150 |
≤196 |
|
Production Capacity (t/h) |
90-180 |
120-250 |
100-200 |
132-253 |
115-320 |
240-550 |
85-440 |
135-625 |
|
Model |
X-VSI7611 |
X-VSI8518 |
X-VSI9526 |
X-VSI1140 |
X-5X7615 |
X-5X8522 |
X-5X9532 |
X-5X1145 |
S-3YZK1860 |
S-3YZK2160 |
S-3YZK2160 |
|
Feed Particle Size (mm) |
≤35 |
≤40 |
≤45 |
≤50 |
≤35 |
≤40 |
≤45 |
≤50 |
≤400 |
≤400 |
≤400 |
|
Production Capacity (t/h) |
120-180 |
200-260 |
300-380 |
450-520 |
150-280 |
240-380 |
350-540 |
500-640 |
65-586 |
81-720 |
100-810 |
