Spiral Classifier/Hydrocyclone

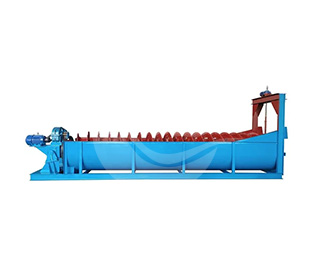

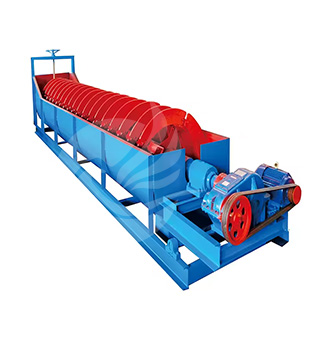

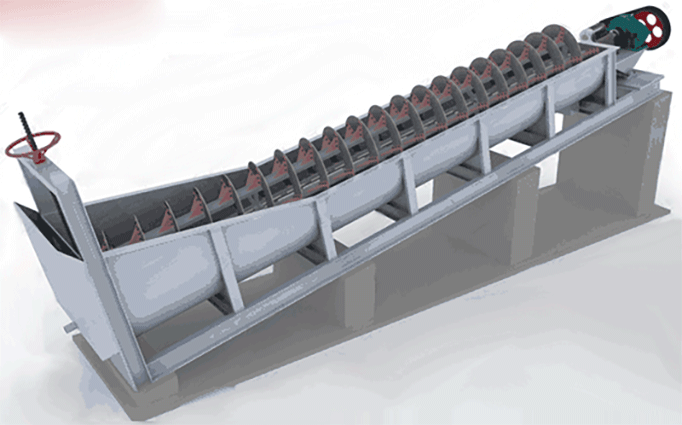

Spiral classifier separates mineral particles based on differences in their settling velocities in a liquid. It is particularly effective for classifying coarse-grained minerals with a particle size range of 0.1-3mm.

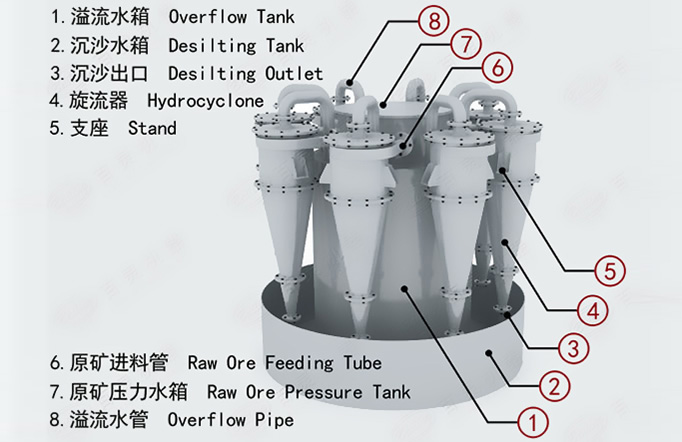

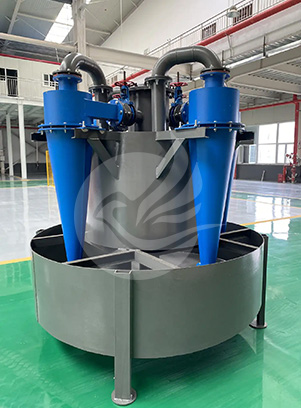

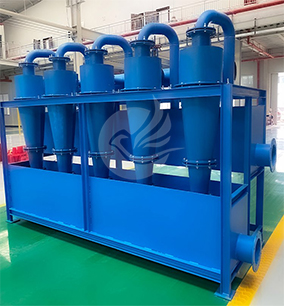

Hydrocyclone utilizes centrifugal force for classification, separation, or concentration, particularly suitable for fine particle classification.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

Performance Advantages

Application Areas

1.Mining: used for classifying minerals such as gold ore, tin ore, tungsten ore, iron ore and so on.

2.Metallurgy: used for mineral classification before smelting.

3.Chemical industry: used for the classification of chemical raw materials.

4.Building materials: used for classifying sand, stone, cement and other materials.

5.Environmental protection: used for classification and dewatering of tailings.

hydrocyclone-8

Technical Parameters

Type Model Spiral Speed（r/min.） Production Capacity（t/h） Spiral Diameter（mm） Spiral Length（mm）

Tank Gradient

（°）

 Driving Motor Elevating Motor Weight（kg）
Sand Return Overflow  Model Power（kw） Model Power（kw）
High Weir Single Spiral Classifier FLG-500 8 145-260 32 Ø500 4390 14-18 Y100L1-4 2.2 manual - 1600
FLG-750 7.8 256-654 65 Ø750 5500 Y112M-6 3 2716
FLG-1000 6.7 473-1026 85 Ø1000 6556 Y132S-6 5.5 4000
FLG-1200 5/6/7 1145-1600 150 Ø1200 6500 Y132M2-6 5.5 Y90L-4 1.5 7943
FLG-1500 2.5/4/6 1140-2740 235 Ø1500 8265 Y132M2-6 7.5 Y100L1-4 2.2 11827
FLG-2000 3.6/5.5 3890-5940 400 Ø2000 8700 Y160M-6 11/15 Y100L2-4 3 20814
FLG-2400 3.6 6800 580 Ø2400 9130 Y160L-6/4 22 Y112M-4 4 24194
FLG-3000 3.2 11625 890 Ø3000 12500 Y200L2-6 30 Y112M-4 4 42188
High Weir Double Spiral Classifier 2FLG-1200 5/6/7 2340-3200 310 Ø1200 6500 Y200L-4 5.5*2 Y90L-4 1.5*2 15840
2FLG-1500 2.5/4/6 2280-5480 470 Ø1500 8230 Y132M2-6 7.5*2 Y100L1-4 2.2*2 22903
2FLG-2000 3.6/5.5 7780-11880 800 Ø2000 8400 Y160M-6 15*2 Y100L2-4 3.0*2 34621
2FLG-2400 3.63 13600 1160 Ø2400 9130 Y160L-4 22*2 Y112M-4 4.0*2 42460
2FLG-3000 3.2 23300 1785 Ø3000 12500 Y200L2-6 30*2 Y112M-4 4.0*2 73030
Submerged Single Spiral Classifier FLC-1000 2.5-7.4 160-700 50-260 Ø1000 8397 Y200L-4 5.5 manual - 5225
FLC-1200 5/6/7 1150-1640 120 Ø1200 8400 Y132M2-6 7.5 Y90L-4 1.5 9583
FLC-1500 2.5-6 1140-2740 185 Ø1500 10500 Y160M-6 7.5 Y100L1-4 2.2 14226
FLC-2000 3.6-5.5 3240-5940 320 Ø2000 18000 Y160M-6 15 Y100L2-4 3 27753
FLC-2400 3.6 6800 455 Ø2400 14130 Y160L-4 18.5 Y112M-4 4 32467
FLC-3000 3.2 11650 705 Ø3000 14300 Y200L1-6 30 Y112M-4 4 43500
Submerged Double Spiral Classifier 2FLC-1200 3.8-6 1770-2800 240 Ø1200 8040 Y200L-4 7.5*2 Y100L1-4 2.2*2 19610
2FLC-1500 2.5-6 2280-5480 370 Ø1500 10500 Y160M-6 7.5*2 Y100L1-4 2.2*2 27450
2FLC-2000 3.6/5.5 7780-11880 640 Ø2000 12900 Y200L2-6 22/30 Y100L2-4 3.0*2 50621
2FLC-2400 3.67 13700 910 Ø2400 14130 Y25S-4 37 Y112M-4 4.0*2 65283
2FLC-3000 3.2 23300 1410 Ø3000 14300 Y225M-4 45 Y112M-4 4.0*2 84900
Model Cylinder Diameter（mm） Cone Angle
（°）		 Overflow Pipe Diameter（mm） Underflow Diameter（mm） Max. Feed Particle Size（mm） Feed Pressure（Mpa） Production
Capacity（m3/h）		 Classification Size
（um）		 Overall Dimension（mm） Weight（T）
Length Width Height
FX660 660 20 165-250 80-155 16 0.03-0.2 250-350 74-220 1140 1000 2920 800
FX660 660 45 165-250 80-155 16 0.03-0.2 250-350 74-220 1140 1000 2000 995
FX610 610 20 155-230 75-140 13 0.03-0.2 200-300 74-220 875 950 2560 550
FX610 610 45 155-230 75-140 13 0.03-0.2 200-300 74-220 875 950 1810 600
FX500 500 20 125-185 55-115 10 0.03-0.3 140-220 74-220 850 700 2050 380
FX500 500 15 125-185 55-115 10 0.03-0.3 140-220 74-150 850 700 2380 540
FX500 500 45 125-185 55-115 10 0.03-0.3 140-220 74-150 850 825 1630 430
FX350 350 20 80-120 30-70 6 0.04-0.3 60-100 50-150 775 620 1765 208
FX350 350 15 80-120 30-70 6 0.04-0.3 60-100 50-120 775 620 1970 210
FX300 300 20 65-115 20-50 5 0.04-0.3 45-85 50-150 498 485 1415 105
FX300 300 15 65-115 20-50 5 0.04-0.3 45-85 40-100 498 485 1642 169
FX250 250 20 60-100 16-45 3 0.06-0.35 40-60 40-100 410 380 1215 75
FX250 250 15 60-100 16-45 3 0.06-0.35 40-60 40-100 410 380 1405 73
FX250 250 10 60-100 16-45 3 0.06-0.35 40-60 30-100 410 380 1788 85
FX200 200 20 40-65 16-32 2 0.06-0.35 25-40 40-100 365 330 1030 45
FX200 200 15 40-65 16-32 2 0.06-0.35 25-40 30-100 410 330 1083 54
FX200 200 10 40-65 16-32 2 0.06-0.35 25-40 30-100 400 365 1490 60
FX150 150 20 30-45 8-22 1.5 0.06-0.35 45981 30-74 310 265 820 29
FX150 150 15 30-45 8-22 1.5 0.06-0.35 45981 30-74 310 265 878 30
FX150 150 10 30-45 8-22 1.5 0.06-0.35 45981 30-74 310 265 1160 35
