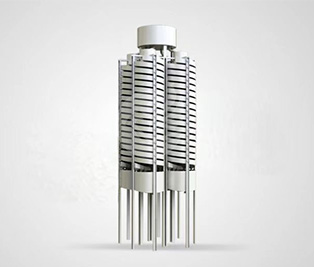

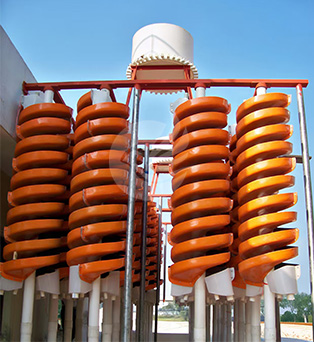

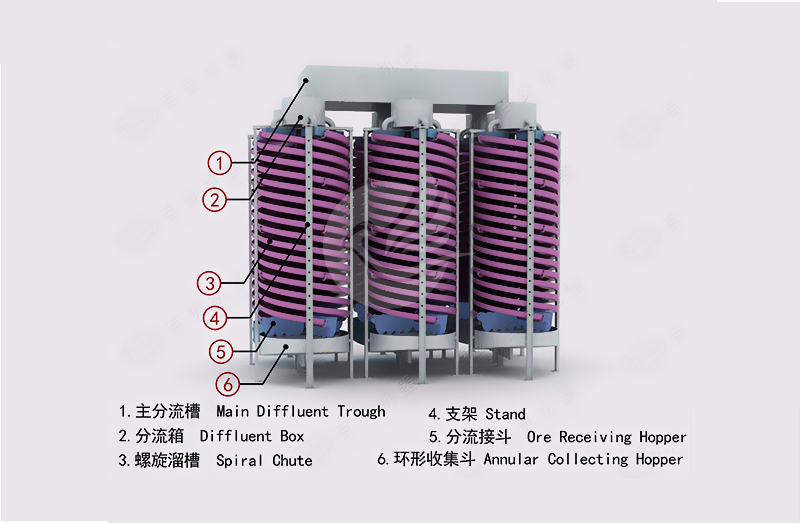

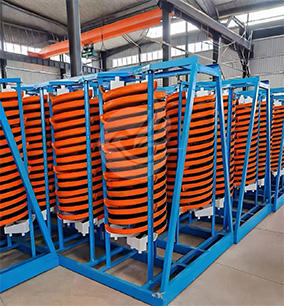

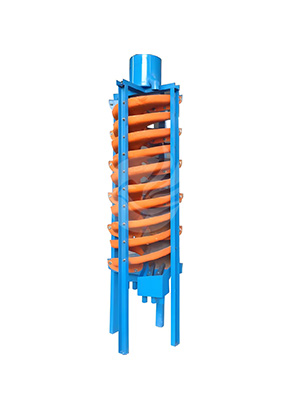

Spiral chute is a gravity separation equipment used for mineral processing,which mainly utilizes gravity, centrifugal force and friction to separate mineral particles with sufficient specific gravity difference.
It is used for the beneficiation of fine-grained ores with a particle size range of 0.02-0.3mm, including iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon, and other metallic and non-metallic minerals.
High recovery, accurate ore separation.
Used for separating various heavy minerals.
No need for power, less energy consumption.
Suitable for large-scale separation.
1.Mining: used for separating metal ores such as gold, tin, tungsten and so on.
2.Environmental protection: processing industrial wastewater and solid waste.
3.Chemical industry: separating chemical substances with different densities.
|
Model |
Diameter（mm） |
Pitch（mm） |
Pitch Diameter Ratio |
Inclination Angle （°） |
Head Number |
Number of Turns |
Feed Particle Size |
Feed Pulp Concentration（%） |
Production Capacity（t/h） |
Area （m2） |
Height（m） |
|
DI2000 |
2000 |
1200 |
0.6 |
9 |
2-4 |
3.5 |
0.04-0.4 |
20-40 |
15-45 |
7 |
6.8 |
|
DI1500 |
1500 |
900 |
0.6 |
9 |
2-4 |
4 |
0.03-0.3 |
20-45 |
10-25 |
5 |
6.1 |
|
DI1200 |
1200 |
720/540 |
0.6 |
9 |
2-4 |
4-5 |
0.03-0.3 |
30-50 |
4-6 |
2 |
5.23 |
|
DI900 |
900 |
540/360 |
0.4 |
9 |
2-3 |
4-5 |
0.03-0.3 |
30-50 |
2-3 |
1.2 |
4 |
|
DI600 |
600 |
390/360 |
0.4 |
9 |
1-2 |
4-5 |
0.02-0.2 |
30-50 |
0.8-1.2 |
0.5 |
2.6 |
|
DI400 |
400 |
180 |
0.45 |
9 |
1-2 |
4-5 |
0.02-0.2 |
30-50 |
0.2-0.5 |
0.25 |
1.3 |
