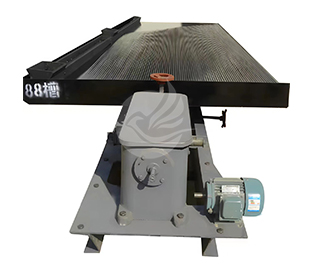

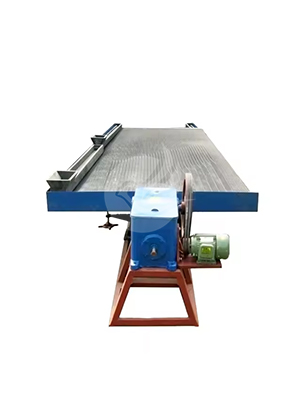

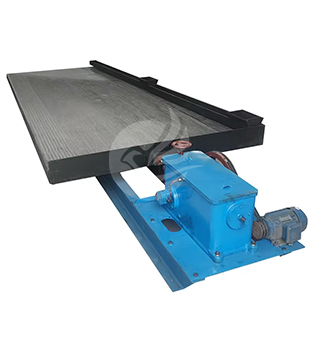

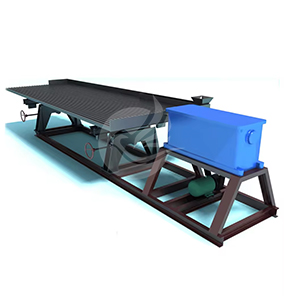

A shaking table is a gravity separation device that utilizes mechanical vibration and inclined water flow to separate minerals based on their density and particle size.
It is primarily used for separating mineral particles with a size range of 0.02-2mm, including sand and slime-grade ores of metals.
It can effectively separate mineral particles with similar density.
Applicable to a variety of minerals and different particle size range.

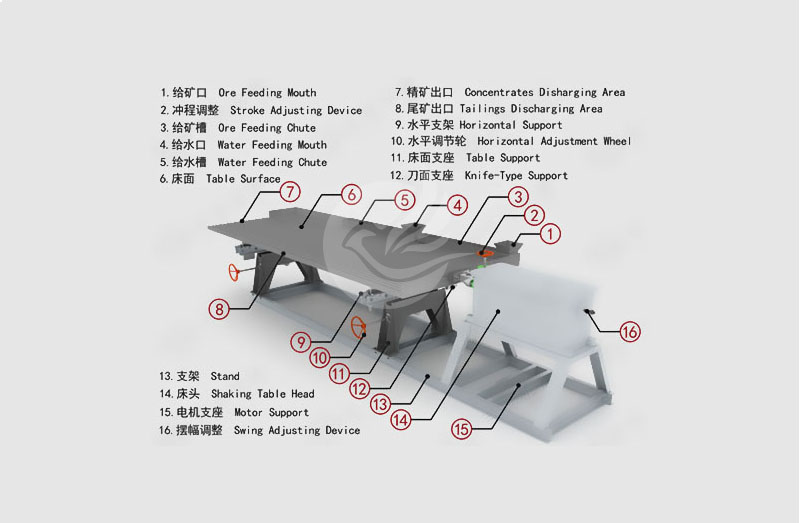

Simple structure, easy to operate and maintain, suitable for small and medium-sized mineral processing plants and laboratories.
Mainly relying on mechanical vibration and water flow, low energy consumption; no chemical pollution.
Vibration frequency, table inclination angle and water flow rate can be adjusted.

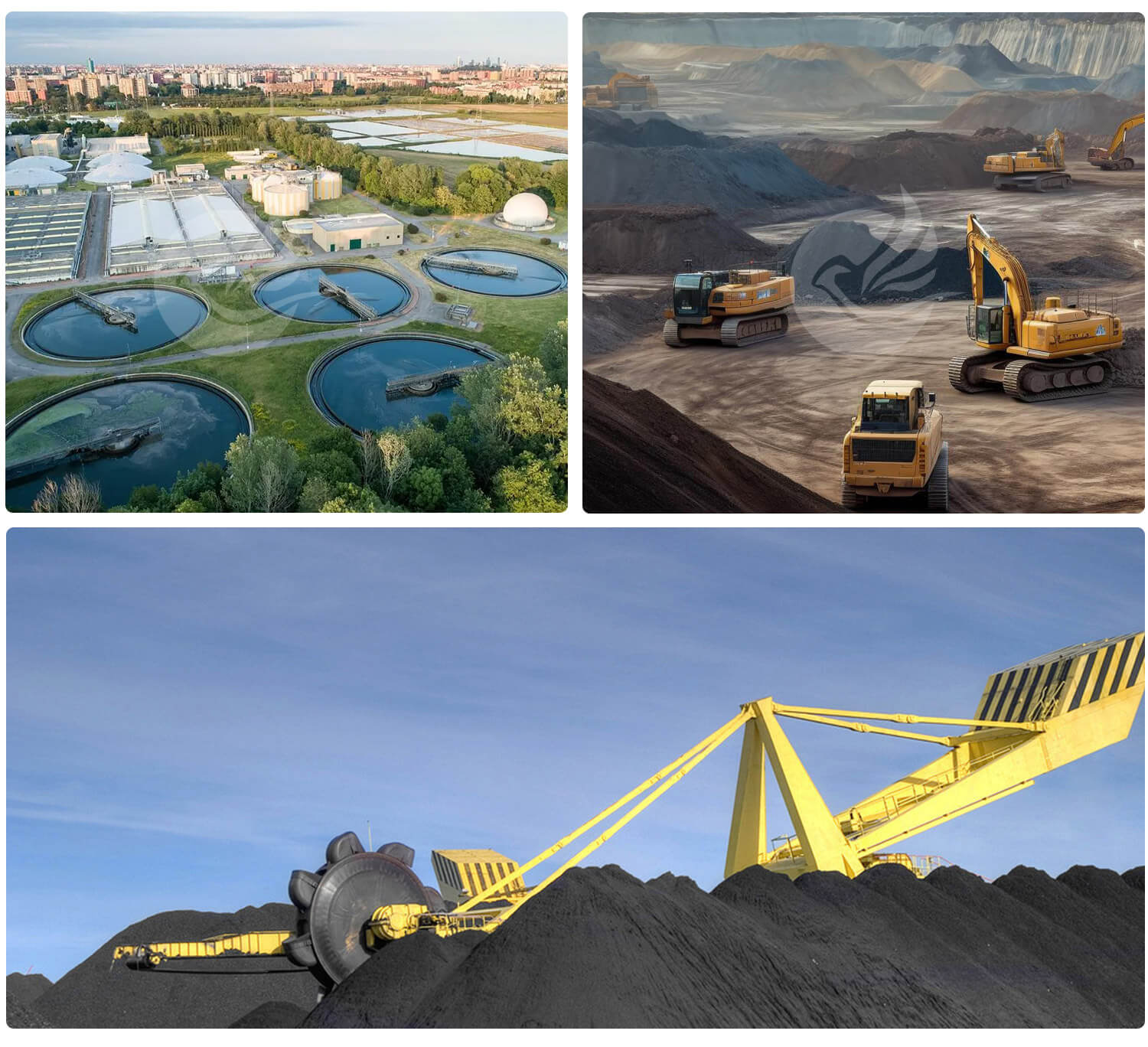

1.Mining: used for separating of gold, tin, tungsten and other metal ores.
2.Coal: used for separating coal and gangue.
3.Environmental protection: processing industrial wastewater and solid waste.
| Model | Coarse Sand Shaking Table | Fine Sand Shaking Table | Slime Shaking Table | |
| Table Dimension (mm) |
Length | 4450 | 4450 | 4450 |
| Drive End Width | 1855 | 1855 | 1855 | |
| Concentrate End Width | 1546 | 1546 | 1546 | |
| Max. Feed Particle Size（mm） | 2 | 0.5 | 0.15 | |
| Feed Quantity（t/d） | 30-60 | 10-20 | 15-25 | |
| Feed Pulp Concentration（%） | 25-30 | 20-25 | 15-25 | |
| Stroke（mm） | 16-22 | 11-16 | 8-16 | |
| Frequency（f） | 45-48 | 48-53 | 50-57 | |
| Water Volume for Cleaning Table（t/d） | 80-150 | 30-60 | 10-17 | |
| Transverse Slope（°） | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Longitudinal Slope（°） | 1.4 | 0.92 | -- | |
| Table Deck Taper Angle（°） | 32-42 | 40 | 42 | |
| Separation Area（m2） | 7.6 | 7.6 | 7.6 | |
| Table Length Ratio | 2.6 | 2.6 | 2.6 | |
| Table Deck End Shape | rectangles | sawtooth shape | triangles | |
| Motor Power（kw） | 1.1 | 1.1 | 1.1 | |
| Transmission Mechanism | Eccentric connecting rod mechanism | |||
