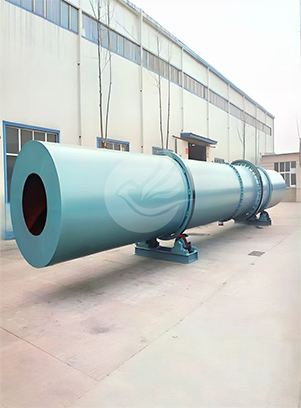

Rotary Drum Dryer

Rotary drum dryer is mainly used to remove water from materials for subsequent processing or transportation.

It is a type of large-scale industrial equipment used for drying ores, slag, coal, clay and other materials.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

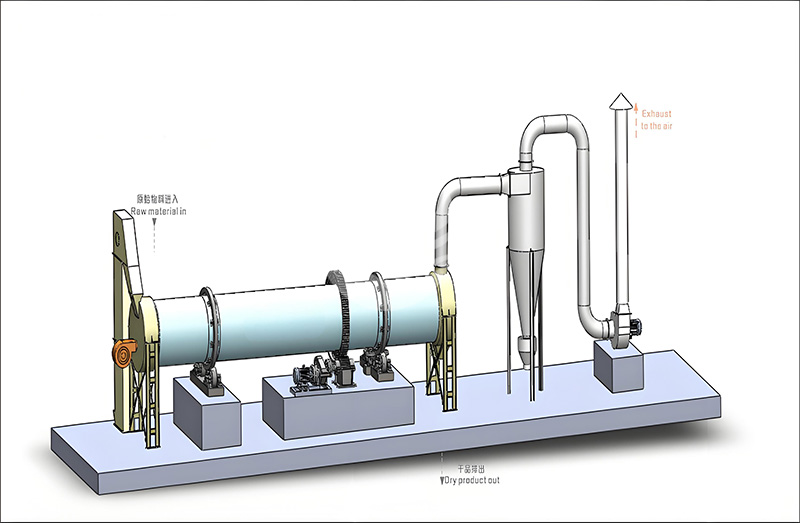

Working Principle

Rotary Drum Dryer

01Rotating drum: Material enters from the higher end and gradually moves toward the lower end as the drum rotates.

02Hot air system: A hot air furnace or burner generates high-temperature hot air, removing moisture from the material.

03Lifting device: It increases the contact area between the material and the hot air, thereby improving drying efficiency.

04Moisture removal system: Moisture is expelled through an exhaust fan, and the dried material is discharged from the lower end.

Performance Advantages

Large processing capacity

Suitable for large-scale continuous production, the processing capacity ranges from several tons to several hundred tons per hour.
Strong adaptability

It can dry various materials such as ore, slag, coal, clay etc.
Excellent drying efficiency

The final moisture content of materials can be controlled by adjusting the hot air temperature, cylinder speed and inclination angle.
High level of automation

Equipped with automatic control system to realize automatic operation.

Application Areas

1. Mining industry: used for drying iron ore, copper ore, gold ore etc.

2. Metallurgical industry: used for drying slag, tailings, coal mine etc.

3. Building materials industry: used for drying limestone, clay, gypsum etc.

4. Chemical industry: used for drying chemical raw materials, fertilizers etc.

Technical Parameters

Model	Inclination （%）	Rotation Speed（r/min）	Inlet Air Temperature （℃）	Power （kw）	Production Capacity （t/h）	Weight （T）
Ø600*6000	3-5	3-8	≤700	3	0.5-1.5	2.9
Ø800*8000	3-5	3-8	≤700	4	0.8-2.0	3.5
Ø800*10000	3-5	3-8	≤700	4	0.8-2.5	4.5
Ø1000*10000	3-5	3-8	≤700	5.5	2-5	5.6
Ø1200*12000	3-5	3-8	≤700	11	4-10	14.8
Ø1500*12000	3-5	2-6	≤800	18.5	8-15	17.8
Ø1800*18000	3-5	2-6	≤800	22	10-23	31
Ø2000*18000	3-5	1.5-6	≤800	30	15-26	43
Ø2200*18000	3-5	1.5-6	≤800	37	20-32	52
Ø2400*20000	3-5	1.5-6	≤800	55	25-38	60
Ø2800*20000	3-5	1.5-6	≤800	75	35-50	72
Ø3000*25000	3-5	1.5-6	≤800	90	40-65	104.9
Ø3200*25000	3-5	1.5-6	≤800	132	75-105	166
Ø3600*30000	3-5	1.5-6	≤800	155	95-160	188
