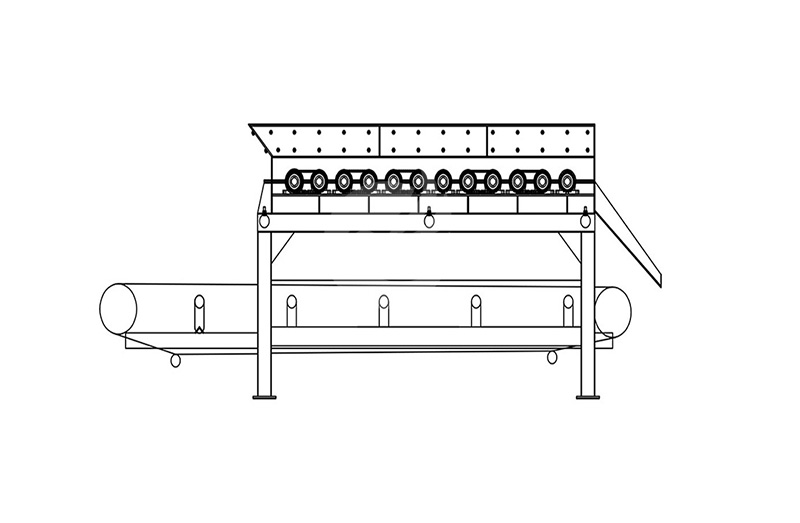

02Screening: as the screen or drum rotates, the mud and small particles fall through the screen openings, while the stones and large particles are separated.
03Separation: mud and stones are discharged from separate outlets to complete the separation process.
It can separate mud and stones quickly and efficiently.
Reasonable design, easy to operate.
Suitable for materials with different particle size and humidity.
Simple structure, easy maintenance, low operating cost.

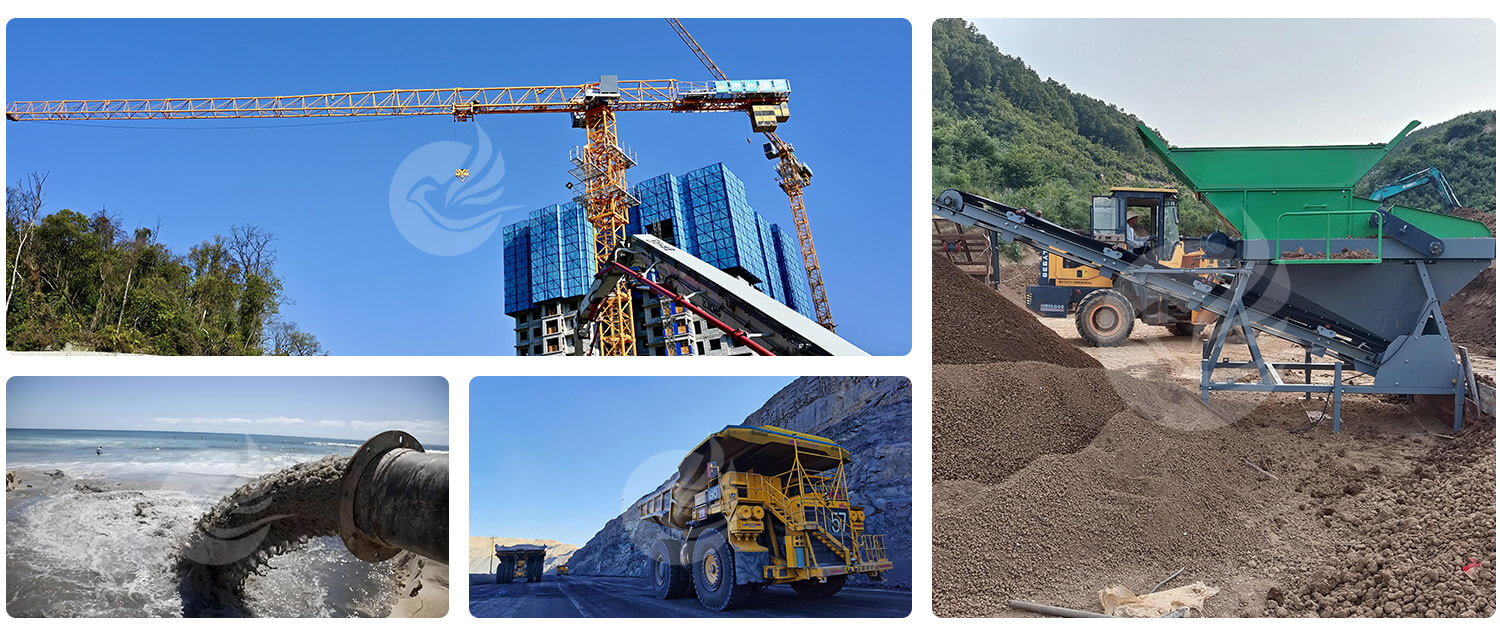

1.Construction site: used for separating mud and stones from construction waste.
2.Mines: used for preliminary screening and separation of ores.
3.River cleaning: used to remove the silt and stones from the river.
4.Soil remediation: used for separating mud and stones in soil restoration projects.
|
Model |
Power （kw） |
Shaft Clearance（mm） |
Number of Shafts (pcs) |
Feed Particle Size（cm） |
Production Capacity （t/h） |
Weight （T） |
|
GZS0816 |
7.5-11 |
10-50 |
6-8 |
≤20 |
30-100 |
4 |
|
GZS1020 |
11-15 |
10-50 |
7-10 |
≤25 |
60-180 |
7 |
|
GZS1230 |
18.5-30 |
15-70 |
8-11 |
≤30 |
100-300 |
12 |
|
GZS1235 |
22-37 |
20-80 |
10-13 |
≤30 |
130-350 |
13 |
|
GZS1340 |
37-45 |
20-90 |
11-14 |
≤33 |
150-500 |
16 |
|
GZS1445 |
45-55 |
25-100 |
12-15 |
≤35 |
180-600 |
20 |
|
GZS1550 |
55-75 |
25-100 |
13-17 |
≤38 |
200-700 |
23 |
|
GZS1655 |
75-90 |
30-100 |
14-18 |
≤40 |
250-800 |
28 |
|
GZS1860 |
75-100 |
30-100 |
15-20 |
≤45 |
350-1000 |
35 |
