Limonite (hematite) rotary kiln is a type of industrial equipment specialized in calcining iron ores.
Through high-temperature calcination, it can remove water, volatile matter and impurities from iron ore, improve iron grade and make it more suitable for iron making or direct reduced iron (DRI) production.

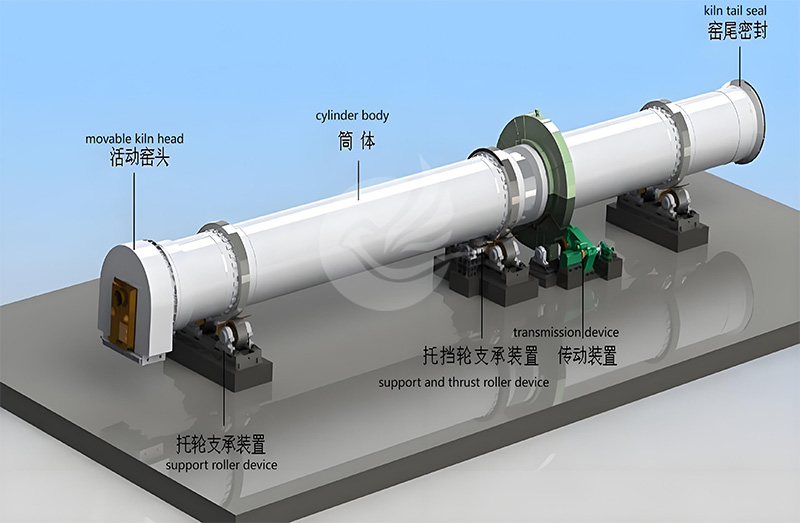

01Rotating cylinder:Iron ore enters from the high end and gradually moves to the low end with the rotation of the cylinder.
02High-temperature calcination: Fuel is burned to produce high-temperature flue gas, which is exchanged with the material in the cylinder.
03DReduction Reaction: In a high temperature environment, limonite and hematite undergo a reduction reaction to remove water, volatiles and impurities and increase iron grade.
Continuous calcination,high processing capacity and high production efficiency.
Suitable for calcining various materials, such as diatomite, kaolin, limestone etc.
The calcination temperature can be accurately controlled by adjusting fuel supply and air flow.
The calcined material has good physical and chemical properties and stable quality.
Equipped with a dust removal system to reduce dust emissions, meeting environmental standards.
1.Building materials: used to produce lightweight thermal insulation materials and decorative materials.
2.Refractory materials: used to make lightweight refractory bricks, refractory castables etc.
3.Chemical industry: used to produce pigments and chemical products such as iron sulfate and ferric chloride.
4.Metallurgical industry: used in iron and steel smelting.
5.Refractory materials: used to produce lightweight refractory bricks, refractory castables etc.
| Model | Cylinder Speed（r/min.） | Inclination（°） | Power （kw） |
Support Structure | Thrust Roller | Weight （T） |
||
| Quantity | Bearing Type | Quantity | Type | |||||
| Ø1.8*45 | 0.66-1.98 | 3.5 | 30 | 3 | rolling | 2 | mechanical | 80 |
| Ø2.2*45 | 0.85-2.54 | 3.5 | 55 | 3 | rolling | 2 | mechanical | 130.7 |
| Ø2.5*60 | 0.3-1.0 | 4 | 75 | 4 | rolling | 2 | mechanical | 177.5 |
| Ø3.0*60 | 0.444-1.332 | 3.5 | 125 | 3 | rolling | 2 | mechanical | 310.9 |
| Ø3.6*72 | 0.7-1.35 | 3.5 | 280 | 4 | rolling | 1 | mechanical | 419 |
| Ø4*80 | 0.686-2.064 | 4 | 355 | 4 | rolling | 1 | mechanical | 564 |
| Ø4.5*110 | 0.856-2.57 | 4 | 2*200 | 4 | rolling | 1 | mechanical | 972 |
