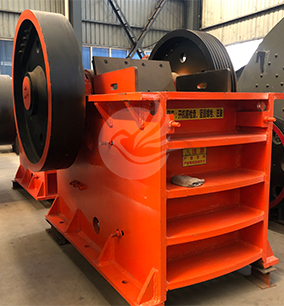

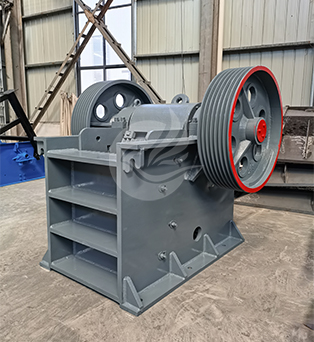

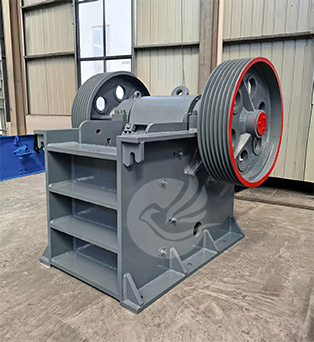

Jaw crusher is the most widely used crusher in the world currently, which can be mainly used for crushing ores and rocks with compressive strength≤320MPa.

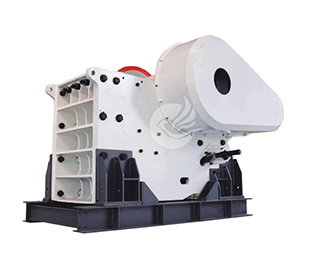

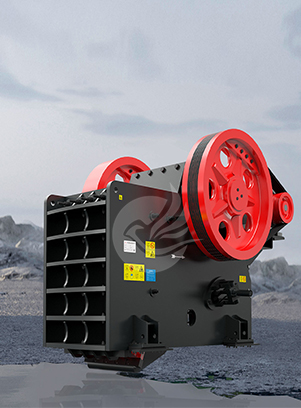

European jaw crusher is a high-efficiency crushing equipment optimized on the basis of traditional jaw crusher, adopting advanced technology and manufacturing process, with higher crushing efficiency, more stable performance and longer service life.
The key components are made of high-strength materials,ensuring a long service life.

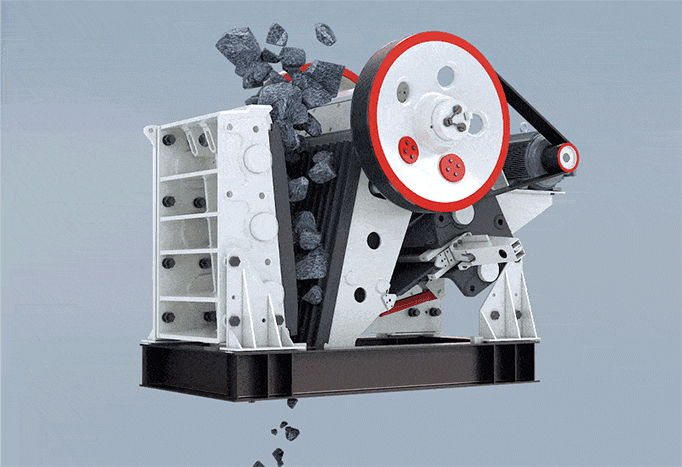

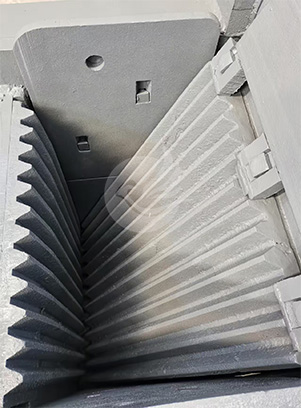

European jaw crusher adopts deep crushing chamber design, large crushing ratio and high output.
Optimize the crushing parameters, reduce energy consumption, dust and noise.
Modular design, easy to disassemble and maintain.
It can process various hardness materials, and control the product size by adjusting the discharge outlet.
1.Mining industry: crushing ores.
2.Metallurgy industry: processing metallurgical raw materials.
3.Construction industry: crushing construction stone.
4.Highway and railway: crushing roadbed materials.
5.Water conservancy and chemical industry: processing related raw materials.
|
Model |
Feed Opening Size （mm） |
Max. Feed Particle Size （mm） |
Discharge Opening Size （mm） |
Production Capacity （t/h) |
Motor Power (kw) |
Weight (T) |
Overall Dimension (mm) |
|
PE-250×400 |
250*400 |
210 |
20-60 |
5-21 |
6P 15 |
2.8 |
1300*1090*1270 |
|
PE-400×600 |
400*600 |
340 |
40-100 |
16-64 |
6P 30 |
7 |
1730*1730*1630 |
|
PE-500×750 |
500*750 |
425 |
50-100 |
40-110 |
6P 55 |
12 |
1980*2080*1870 |
|
PE-600×750 |
600*750 |
500 |
150-200 |
80-240 |
6P 55 |
15.8 |
2070*2000*1920 |
|
PE-600×900 |
600*900 |
500 |
65-160 |
50-160 |
6P 55 |
17 |
2190*2206*2300 |
|
PE-750×1060 |
750*1060 |
630 |
80-140 |
110-320 |
8P 110 |
29 |
2660*2430*2800 |
|
PE-800×1060 |
800*1060 |
640 |
130-190 |
130-330 |
8P 110 |
29.8 |
2710*2430*2800 |
|
PE-830×1060 |
830*1060 |
650 |
160-220 |
150-336 |
8P 110 |
30.7 |
2740*2430*2800 |
|
PE-870×1060 |
870*1060 |
660 |
200-260 |
190-336 |
8P 110 |
31.5 |
2810*2430*2800 |
|
PE-900×1060 |
900*1060 |
685 |
230-290 |
230-390 |
8P 110 |
33 |
2870*2420*2940 |
|
PE-900×1200 |
900*1200 |
750 |
95-165 |
220-380 |
8P 110 |
52 |
3380*2870*3330 |
|
PE-1000×1200 |
1000*1200 |
850 |
195-265 |
315-500 |
8P 110 |
55 |
3480*2876*3330 |
|
PE-1200×1500 |
1200*1500 |
1020 |
150-350 |
400-800 |
6P 160-220 |
100.9 |
4200*3300*3500 |
|
PE-1500×1800 |
1500*1500 |
1200 |
220-350 |
500-1000 |
8P 280-355 |
139 |
5160*3660*4248 |
|
PEX-150×750 |
150*750 |
120 |
18-48 |
8-25 |
4P 15 |
3.8 |
1200*1530*1060 |
|
PEX-250×750 |
250*750 |
210 |
25-60 |
13-25 |
6P 22 |
5.5 |
1380*1750*1540 |
|
PEX-250×1000 |
250*1000 |
210 |
25-60 |
16-52 |
6P 30 |
7 |
1560*1950*1390 |
|
PEX-250×1200 |
250*1200 |
210 |
25-60 |
20-61 |
6P 37 |
9.7 |
2140*1660*1500 |
|
PEX-300×1300 |
300*1300 |
250 |
20-90 |
16-105 |
6P 55 |
15.6 |
2720*1950*1600 |
|
Model |
Feed Opening Size （mm） |
Motor Power（kw） |
Rotation Speed（rpm） |
Fixed Jaw Plate Length （mm) |
Max. Weight of Maintenance Component (moving jaw assembly excluding flywheel)（kg） |
Total Weight （excluding motor and accessories） （kg） |
|
CX80 |
800*510 |
75 |
350 |
1100 |
2870 |
7520 |
|
CX96 |
930*580 |
75（90） |
300 |
1380 |
6500 |
17300 |
|
CX100 |
1000*760 |
110（90） |
260 |
1600 |
7060 |
20100 |
|
CX106 |
1060*700 |
110 |
280 |
1450 |
4020 |
21500 |
|
CX110 |
1100*850 |
132（160） |
230 |
1800 |
9000 |
25060 |
|
CX125 |
1250*950 |
160（132） |
220 |
2000 |
12960 |
36700 |
|
CX140 |
1400*1070 |
200（160） |
220 |
2100 |
15950 |
45300 |
|
CX160 |
1600*1200 |
250（200） |
220 |
2500 |
21380 |
68600 |
