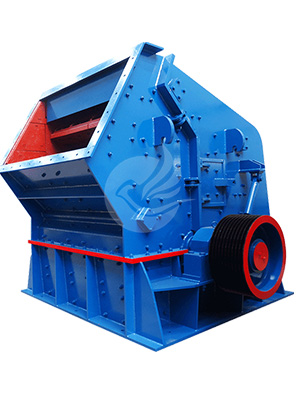

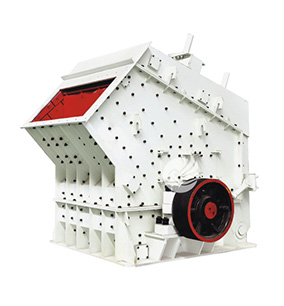

Impact crusher is a type of equipment that utilizes impact energy to crush materials.It is suitable for medium and fine crushing operation of medium-hard materials.

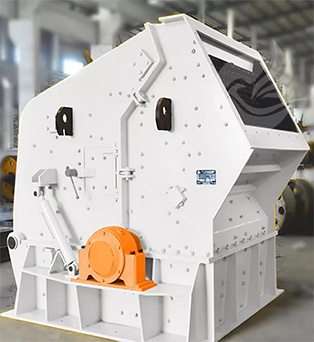

The European impact crusher is a high-efficiency crushing device optimized on the basis of traditional impact crusher with higher crushing efficiency, more stable performance, and a longer service life.

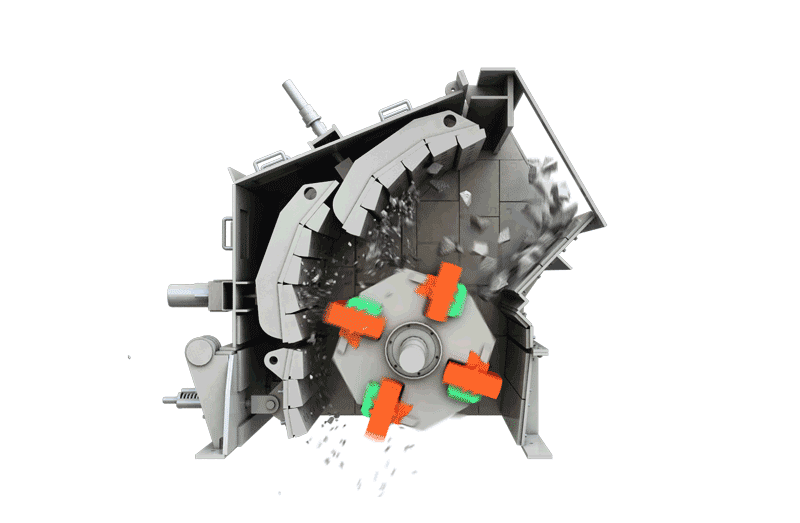

The ordinary impact crusher utilizes impact energy, while European impact crusher adopts heavy-duty rotor design.
The crushed material has a uniform particle size with a high proportion of cubic particles.
Compact structure and easy to maintain.
High crushing efficiency, low energy consumption.
Suitable for various medium-hard materials.
1. Mining: crushing various types of ores.
2. Metallurgy: processing metallurgical raw materials.
3. Chemical industry: crushing chemical raw materials.
4. Building materials: crushing construction stones.
5. Highway and railway: crushing roadbed materials.
6. Water conservancy: processing related raw materials.
|
Model |
Rotor Size (Diameter*Length) （mm） |
Feed Opeing Size （mm） |
Max. Feed Particel Size （mm） |
Production Capacity （t/h) |
Motor Power （kw） |
Weight （T） |
|
PF-1007 |
Ø1000*700 |
400*730 |
250 |
15-60 |
37-55 |
9.5 |
|
PF-1010 |
Ø1000*1050 |
400*1080 |
300 |
50-90 |
55-75 |
14 |
|
PF-1210 |
Ø1250*1050 |
400*1080 |
300 |
70-130 |
110-132 |
17 |
|
PF-1214 |
Ø1250*1400 |
400*1430 |
300 |
90-180 |
132-160 |
22 |
|
PF-1315 |
Ø1320*1500 |
860*1520 |
350 |
120-250 |
180-260 |
26 |
|
PF-1320 |
Ø1320*2000 |
860*2030 |
500 |
160-350 |
300-375 |
30 |
|
PF-1520 |
Ø1500*2000 |
830*2040 |
700 |
200-550 |
315-400 |
50.6 |
|
PF-1820 |
Ø1800*2000 |
1260*2040 |
800 |
400-800 |
630-710 |
83.21 |
|
Model |
Feed Opening Size （mm） |
Max. Feed Particle Size （mm） |
Production Capacity（t/h） |
Motor Power （kw） |
Weight （T） |
|
LF150 |
820*980 |
600 |
100-200 |
110-132 |
12 |
|
LF250 |
960*1360 |
800 |
200-400 |
220-250 |
17 |
|
LF350 |
1050*1700 |
800 |
300-500 |
315-400 |
24 |
|
LF500 |
1350*1950 |
1000 |
400-700 |
440-500 |
30 |
