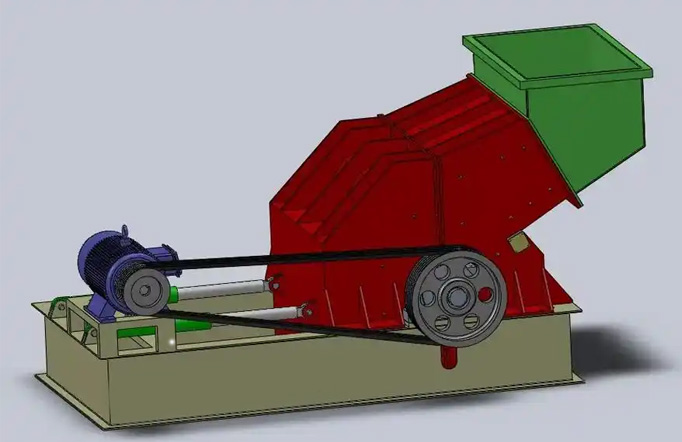

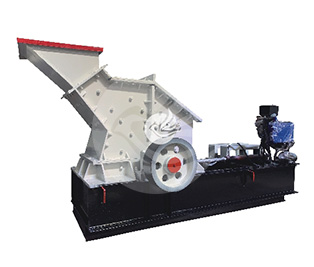

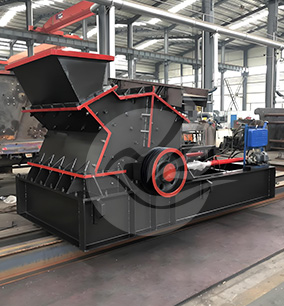

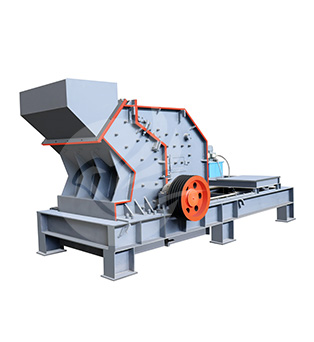

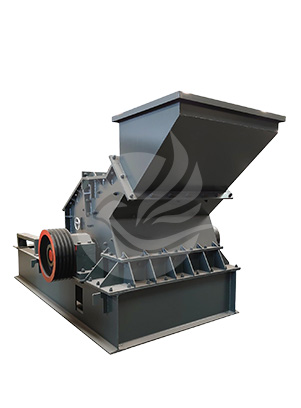

Hydraulic open-box sand making machine is an advanced mining crushing equipment, the hydraulic system can accurately control the degree of opening and closing of the crushing chamber, enabling adjustment of the output particle size.
It is widely used in the fine crushing of various minerals, such as granite, basalt, limestone, river cobbles, cement clinker, quartzite, iron ore, bauxite and so on.
It utilizes hydraulic system to provide powerful crushing force with high efficiency.
Control the discharge particle size by adjusting the pressure of the hydraulic system.
Key parts are made of wear-resistant materials to prolong service life.
Equipped with advanced control system to realize automatic operation.
The hydraulic system is easy to maintain, and it is convenient to open and close the crushing chamber.
1.Mining industry:used for crushing various ores to produce high-quality sand and gravel materials.
2.Construction Industry:used to produce construction sand and concrete aggregate.
3. Highway and railway construction:used to produce roadbed and pavement materials and provide high-hardness and high-wear-resistant sand and gravel materials.
4.Cement industry:used for crushing limestone, gypsum and other raw materials to produce sand and gravel materials required for cement.
5.Glass industry:used to crush quartz sand and produce high-purity sand and gravel materials for glass manufacturing.
|
Model |
Feed Opening Size （mm） |
Feed Particle Size （mm） |
Discharge Particle Size（mm） |
adjustable discharge opening width （mm） |
Production Capacity （t/h） |
Motor Power （kw） |
|
800×400 |
400×185 |
＜120 |
＜5 |
5-20 |
20-30 |
30 |
|
800×800 |
550×330 |
＜180 |
＜5 |
5-20 |
35-45 |
45 |
|
1000×1000 |
1000×350 |
＜180 |
＜5 |
5-20 |
45-55 |
75 |
|
1200×1200 |
1200×450 |
＜180 |
＜5 |
5-20 |
100-110 |
132 |
|
1400×1400 |
1500×500 |
＜190 |
＜5 |
5-20 |
100-150 |
160 |
|
1600×1600 |
1600×550 |
＜190 |
＜5 |
5-20 |
170-210 |
200 |
|
1800×1800 |
1800×800 |
＜190 |
＜5 |
5-20 |
250-300 |
315 |
