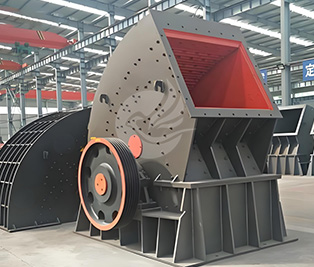

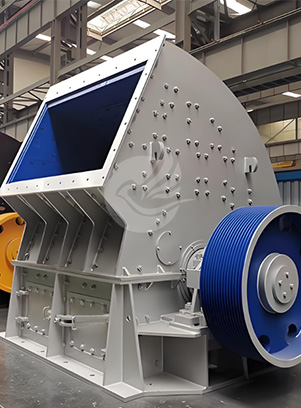

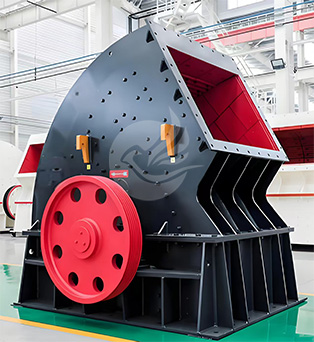

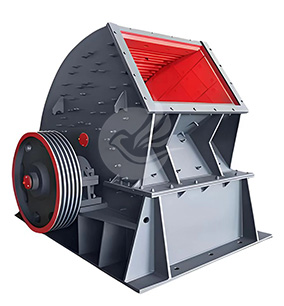

Heavy Hammer Crusher

Heavy hammer crusher is mainly used for crushing medium hardness and brittle materials, such as limestone, coal gangue, shale and so on.

It offers larger feed particle size and higher crushing ratio compared with other hammer crushers with the advantages of alloy composite hammer head with high wear resistance, large rotational inertia and high rotor kinetic energy.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

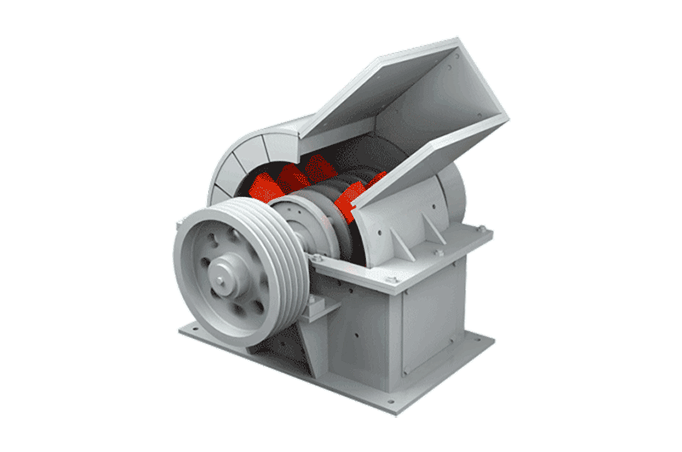

Working Principle

Performance Advantages

Application Areas

1.Mining: crushing various ores.

2.Building materials: crushing building stones.

3.Metallurgy: processing metallurgical raw materials.

4.Chemical industry: crushing chemical raw materials.

5.Highway and railroad: crushing road base materials.

6.Water conservancy: processing related raw materials.

Application

Technical Parameters

Model

Rotor Size

(Diameter*Length)

（mm）

Feed Opening Size（mm）

Feed Particle Size（mm）

Production Capacity（t/h)

Motor Power

（kw）

Overall Dimension（mm）

PCZ1310

Ø1310*790

850*800

≤600

100-160

132

2818*2155*2388

PCZ1510

Ø1500*950

1000*900

≤700

160-210

132*2

3260*2414*2750

PCZ1512

Ø1500*1160

1200*900

≤750

250-320

160*2

3260*2624*2750

PCZ1615

Ø1650*1452

1500*1200

≤1000

420-500

200*2

3667*2937*3436

PCZ1620

Ø1660*1900

2000*1200

≤1200

800-1000

400*2

3667*3200*3436

PCZ1820

Ø1800*1964

2000*1200

≤1200

1000-1200

450*2

3700*3270*3515

PC0706

Ø700*570

618*510

≤400

50-70

75

1950*1340*1480

PC0808

Ø800*750

780*610

≤500

80-100

132

2280*1790*1670

PC0910

Ø900*1000

1070*750

≤600

150-200

110*2

2600*2200*1940

PC1012

Ø1000*1180

1255*810

≤650

250-300

132*2

2800*2310*2210

PC1213

Ø1200*1280

1350*920

≤750

300-350

160*2

2970*2580*2510

PC1216

Ø1200*1590

1530*920

≤750

400-500

200*2

3070*2840*2580

PC1220

Ø1220*1950

2000*920

≤750

500-600

220*2

3080*3380*2580
