Flotation Machine

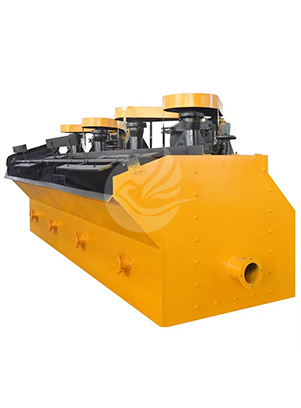

BF Flotation Machine: suitable for roughing and scavenging separation in large and medium sized beneficiation plants.

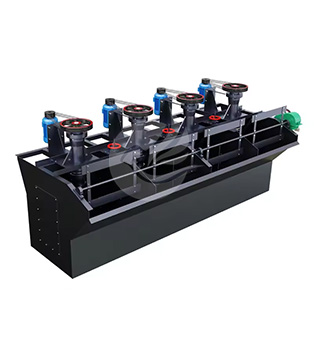

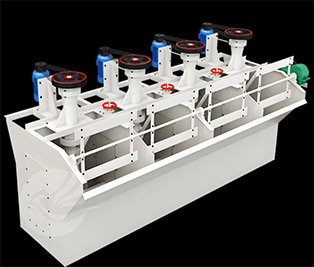

GF Flotation Machine: ideal for small and medium sized plants.

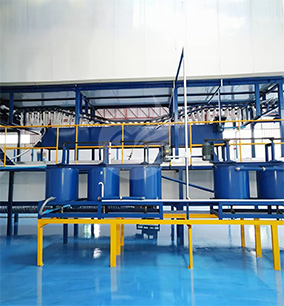

Inflatable Flotation Column: a micro-bubble counter-current contact flotation equipment.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

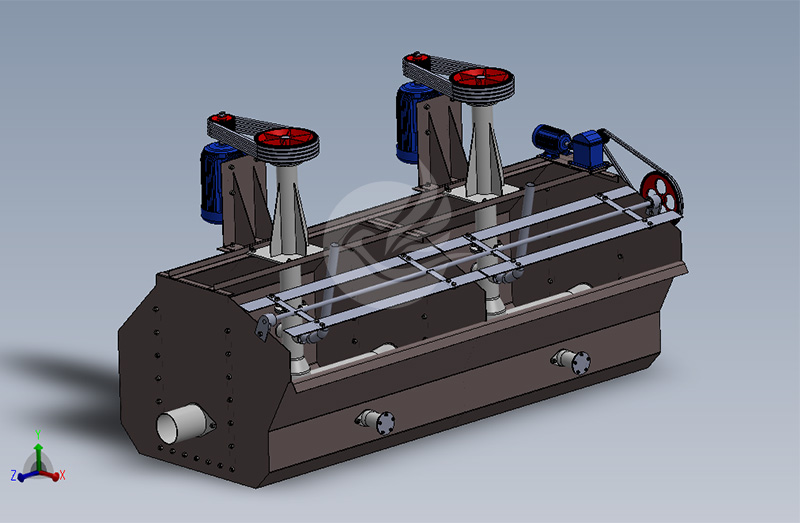

Working Principle

Performance Advantages

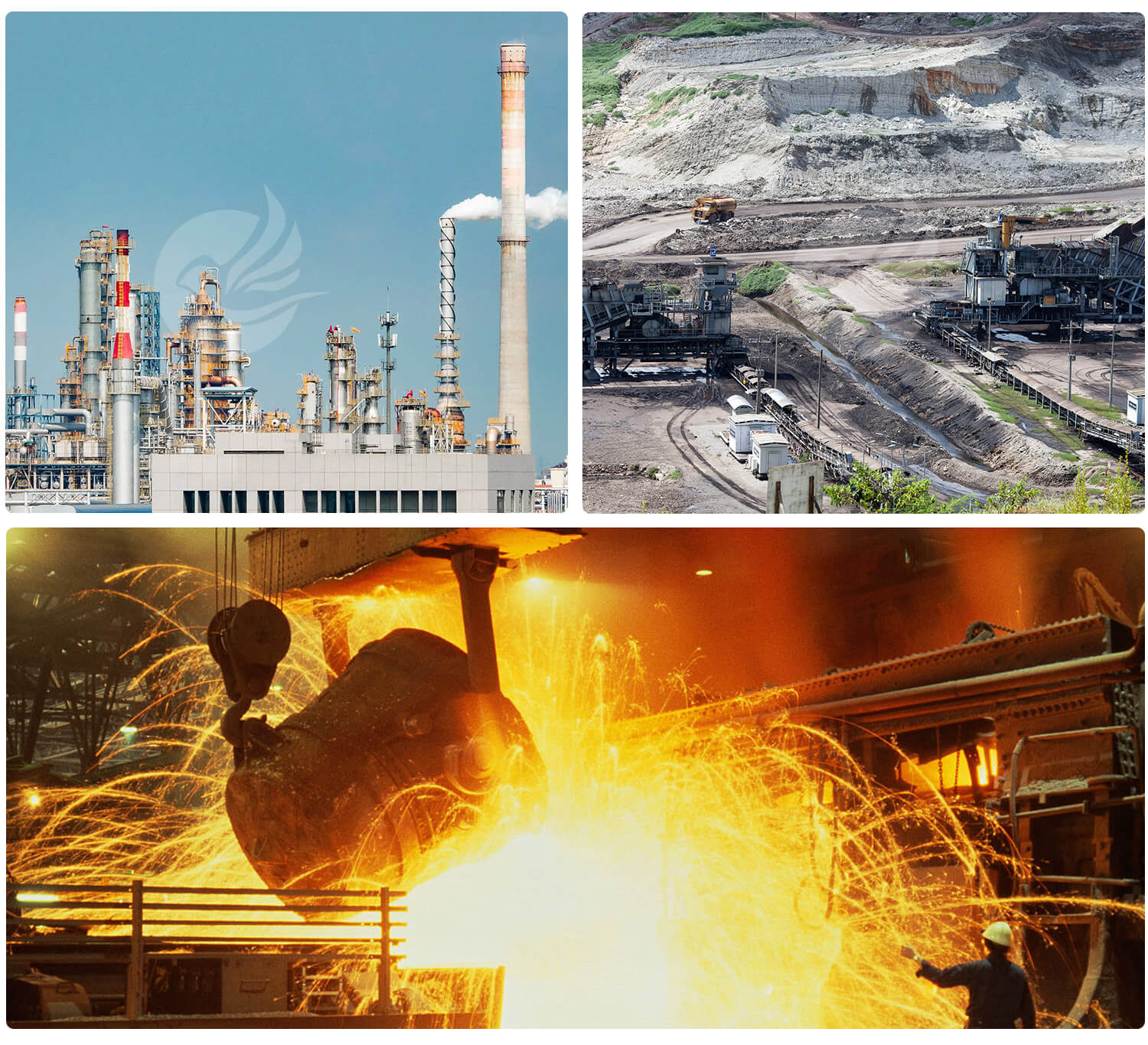

Application Areas

1.Mining Industry: used for the beneficiation of metal ores such as copper, lead, zinc, gold, and silver.

2.Metallurgy: used for the enrichment of minerals before smelting.

3.Chemical Industry: used for the separation and purification of certain chemical raw materials.

application-1

Technical Parameters

Model

Volume

（m3）

Flotation Cell Size（mm）

Impeller Diameter（mm）

Production Capacity（m3/min.）

Motor Power

（kw）

Single Cell Weight

（kg）

BF-0.37

0.37

740*740*750

286

0.2-2.4

1.5/1.1

470

BF-0.65

0.65

850*950*900

300

0.3-0.7

3/1.1

932

BF-1.2

1.2

1050*1150*1100

450

0.6-1.2

5.5/1.1

1370

BF-2.0

2.0

1400*1450*1120

500

1-2

7.5/1.1

1750

BF-2.8

2.8

1650*1650*1150

550

1.4-3

11/1.5

2130

BF-4

4

1900*2000*1200

650

2-4

15/1.5

2585

BF-6

6

2200*2350*1300

700

3-6

18.5/1.5

3300

BF-8

8

2250*2850*1400

760

4-8

30/1.5

4130

BF-10

10

2250*2850*1700

760

5-10

30/1.5

4660

BF-16

16

2850*3800*1700

850

8-16

37/1.5

8320

BF-20

20

2850*3800*2000

850

10-20

37/1.5

8670

BF-24

24

3150*4150*2000

920

12-24

45/1.5

8970

Model

Volume（m3）

Flotation Cell Size（mm）

Motor Power（kw）

Production Capacity（m3/min.）

Air Flow Rate（m3/min.）

Scraper Motor Power

（kw）

Single Cell Weight

（kg）

GF-0.35

0.35

700*700*730

1.5

0.1-0.2

1.2

0.75

470

GF-0.7

0.7

900*900*900

3

0.1-0.4

1.2

1.1

932

GF-1.1

1.1

1100*1100*1100

5

0.2-0.5

1.2

1.1

1370

GF-2

2

1400*1400*1150

7.5

0.3-1.0

1.2

1.5

1750

GF-3

3

1500*1850*1200

11

0.5-1.5

1.2

1.5

2230

GF-4

4

1600*2150*1250

15

0.5-2.0

1.2

1.5

2585

GF-6

6

2000*2500*1300

22

1.0-3.0

1.2

1.5

3300

GF-8

8

2200*2900*1400

30

1.0-4.0

1.2

1.5

4130

GF-10

10

2200*2900*1700

30

2.0-6.0

1.2

1.5

4500

GF-16

16

2850*3800*1700

45

3.0-8.0

1.2

2.2

8320

GF-20

20

2850*3800*2000

45

4.0-10.0

1.2

2.2

8670

GF-24

24

3150*4150*2000

55

5.0-12.0

1.2

2.2

8970

GF-28

28

3150*4150*2300

55

5.0-14.0

1.2

2.2

9480

GF-42

42

3600*4800*2650

75

8.0-20.0

1.2

3

19400

Model

Froth Zone Area（m2）

Feed Pulp Concentration（%）

Production Capacity（m3/h）

Aeration Rate（m3/h）

∅400*（8000-14000）

0.126

10-40

2-10

8-12

∅600*（8000-14000）

0.283

10-40

3-11

17-25

∅700*（8000-14000）

0.385

10-40

4-13

23-35

∅800*（8000-14000）

0.503

10-40

5-18

30-45

∅900*（8000-14000）

0.635

10-40

7-25

38-57

∅1000*（8000-14000）

0.785

10-40

8-28

47-71

∅1200*（8000-14000）

1.131

10-40

12-41

68-102

∅1500*（8000-14000）

1.767

10-40

19-64

106-159

∅1800*（8000-14000）

2.543

10-40

27-92

153-229

∅2000*（8000-14000）

3.142

10-40

34-113

189-283

∅2200*（8000-14000）

3.801

10-40

41-137

228-342

∅2500*（8000-14000）

4.524

10-40

49-163

271-407

∅3000*（8000-14000）

7.065

10-40

75-235

417-588

∅3200*（8000-14000）

8.038

10-40

82-256

455-640

∅3600*（8000-14000）

10.174

10-40

105-335

583-876

∅3800*（8000-14000）

11.335

10-40

122-408

680-1021

∅4000*（8000-14000）

12.560

10-40

140-456

778-1176

∅4500*（8000-14000）

15.896

10-40

176-562

978-1405

∅5000*（8000-14000）

19.625

10-40

225-692

1285-1746
