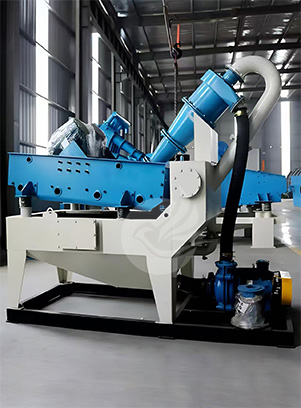

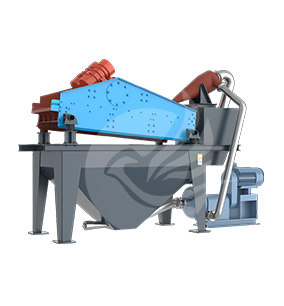

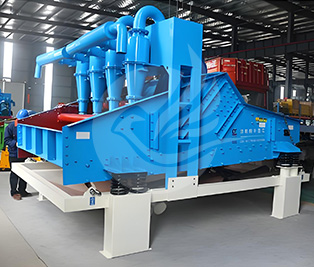

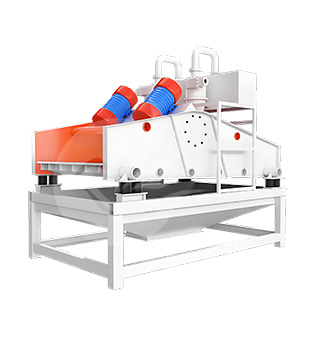

Fine Sand Recycling Machine

Fine sand recycling machine is a type of equipment integrating fine sand recycling and dewatering functions, which is mainly used in sand and gravel production line to recycle fine sand and reduce its moisture content.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

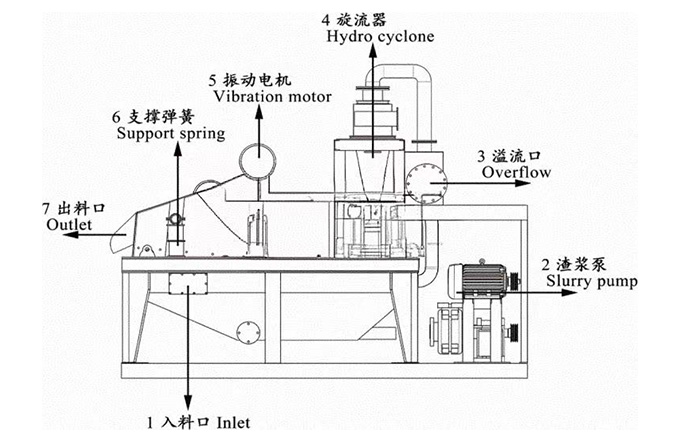

Working Principle

Fine Sand Recycling Machine

01Feeding: sand washing wastewater enters the equipment through the feed inlet.

02Separation: Fine sand is separated from muddy water by centrifugal force and screen.

03Dewatering: Fine sand enters the dehydration screen and is further dewatered by vibration and centrifugal force

04Discharge: The recycled fine sand is discharged from the discharge outlet, while the muddy water is discharged through the drainage port.

Performance Advantages

Efficient Recycling

Effectively recycle fine sand and reduce resource waste.
Energy Saving and Environmental Protection

Water recycling, reduce sewage discharge.
Compact Structure

Small footprint, easy to install and maintain.
High Automation

Easy operation, reduce labor cost.

Application Areas

1.Construction industry:used for improving the purity of sand and gravel materials.

2.Mining industry:used to wash sand and gravel materials after crushing various ores.

3.Water conservancy and hydropower engineering:used to wash sand and gravel aggregate to meet the requirements of high-strength and high-durability materials in dams, hydroelectric power stations and other projects.

4. Highway and railway construction:used to clean roadbed and pavement materials.

5.Glass industry:used to clean quartz sand and produce high purity sand and gravel materials required for glass manufacturing.

6.Chemical Industry:used to clean chemical raw materials and produce gravel materials for chemical products.

Technical Parameters

Model	Sand Pump		High-pressure Separator Specification （mm）	Dehydration Screen			Water Treatment Capacity（m3/h）
Model	Power (kw)	Material	High-pressure Separator Specification （mm）	Model	Material	Power (kw)	Water Treatment Capacity（m3/h）
XH-250	11	Cr26	250	0.6*2.25	high-molecular polyurethane	2*0.75	30-60
XH-300	15	Cr26	300	0.8*2.25	high-molecular polyurethane	2*0.75	60-100
XH-350	18.5	Cr26	350	1.0*2.25	high-molecular polyurethane	2*1.1	70-130
XH-500	22	Cr26	500	1.2*3.0	high-molecular polyurethane	2*1.1	100-220
XH-600	15	Cr26	2*250	1.5*3.0	high-molecular polyurethane	2*2.2	120-272
XH-700	30	Cr26	2*300	1.8*4.0	high-molecular polyurethane	2*3.0	180-350
XH-800	15*2	Cr26	2*350	2.0*5.0	high-molecular polyurethane	2*11	200-350
XH-900	15*4	Cr26	4*300	2.4*6.0	high-molecular polyurethane	2*15	400-600
