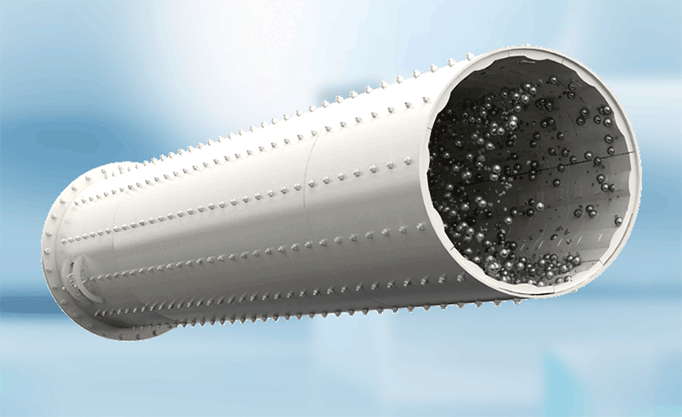

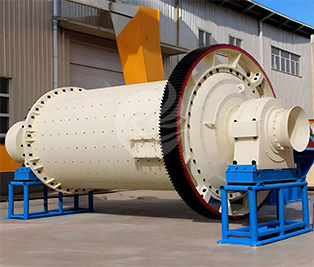

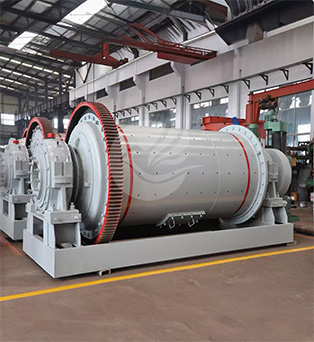

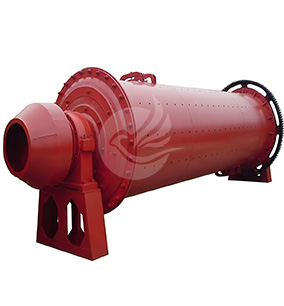

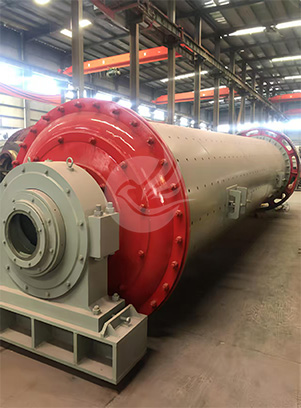

Energy-saving Ball Mill

Energy-saving ball mill is a equipment optimized on the basis of traditional ball mill.Due to its feature of high efficiency and energy saving,it is widely used for fine grinding of materials in various industries.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

Performance Advantages

Application Areas

1. Mining industry: used for fine grinding of ores.

2. Building materials industry: used for grinding of cement and slag.

3. Chemical industry: used in the grinding of pigments and dyes.

4. Metallurgical industry: used for the preparation of metal powder.

Energy-saving-Ball-Mill-7

Technical Parameters

Model

Cylinder Speed（r/min）

Ball Charge

（T）

Feed Particle Size

（mm）

Discharge Particle Size

（mm）

Production Capacity

（t/h）

Motor Power

（kw）

Weight

（T）

Ø900*1800

36

1.5

≤20

0.075-0.89

0.65-2

18.5

4.6

Ø900*3000

36

2.7

≤20

0.075-0.89

1.1-3.5

22

5.6

Ø1200*2400

36

3

≤25

0.074-0.6

2.2-4.8

30

10.5

Ø1200*3000

36

3.5

≤25

0.074-0.4

2.7-5

37

11.8

Ø1200*4500

32.4

5

≤25

0.074-0.4

4-7.5

55

13.8

Ø1500*3000

29.7

7.5

≤25

0.074-0.4

4.3-8

75

15

Ø1500*3500

29.7

7.5

≤25

0.074-0.4

4.5-9

75

16.5

Ø1500*4500

27

11

≤25

0.074-0.4

6-12

90

18

Ø1500*5700

28

12

≤25

0.074-0.4

7-15

130

22

Ø1830*3000

25.4

11

≤25

0.074-0.4

6.5-12

130

28

Ø1830*3600

25.4

13

≤25

0.074-0.4

8-13

130

30

Ø1830*4500

25.4

15

≤25

0.074-0.4

10-18

155

32

Ø1830*6500

24.1

21

≤25

0.074-0.4

14-26

210

35

Ø1830*7000

25

23

≤25

0.074-0.4

15-28

245

39

Ø2100*3000

23.7

15

≤25

0.074-0.4

9-16

180

37

Ø2100*3600

23.7

18

≤25

0.074-0.4

10-19

210

39

Ø2100*4500

23.7

24

≤25

0.074-0.4

13-24

245

41

Ø2100*7000

23.7

26

≤25

0.074-0.4

20-37

280

55

Ø2200*4500

21.5

27

≤25

0.074-0.4

14-26

280

50

Ø2200*7000

21.7

35

≤25

0.074-0.4

22-41

380

60

Ø2400*3600

21

23

≤25

0.074-0.4

14-25

320

63

Ø2400*4500

21

27

≤25

0.074-0.4

17-32

380

69

Ø2400*7000

20.9

42

≤25

0.074-0.4

26-49

480

80

Ø2700*3600

20.7

33

≤25

0.074-0.4

19-32

380

90

Ø2700*4000

20.7

35

≤25

0.074-0.4

20-36

380

94

Ø2700*4500

20.7

38

≤25

0.074-0.4

21-40

480

98

Ø2700*7000

20.7

55

≤25

0.074-0.4

33-62

630

116

Ø3200*4500

19

56

≤25

0.074-0.4

35-68

800

132

Ø3200*7000

18

73

≤25

0.074-0.4

47-78

1250

185

Ø3600*4500

17

76

≤25

0.074-0.4

49-82

1250

185

Ø3600*6000

17

100

≤25

0.074-0.4

52-96

1400

235

Ø3600*8500

17

130

≤25

0.074-0.4

70-130

1800

270

Ø3800*6500

16.7

121

≤25

0.074-0.4

73-137

1800

277

Ø3800*8500

16.7

158

≤25

0.074-0.4

82-143

2000

305

Ø4000*6000

16.7

135

≤25

0.074-0.4

90-160

2000

315
