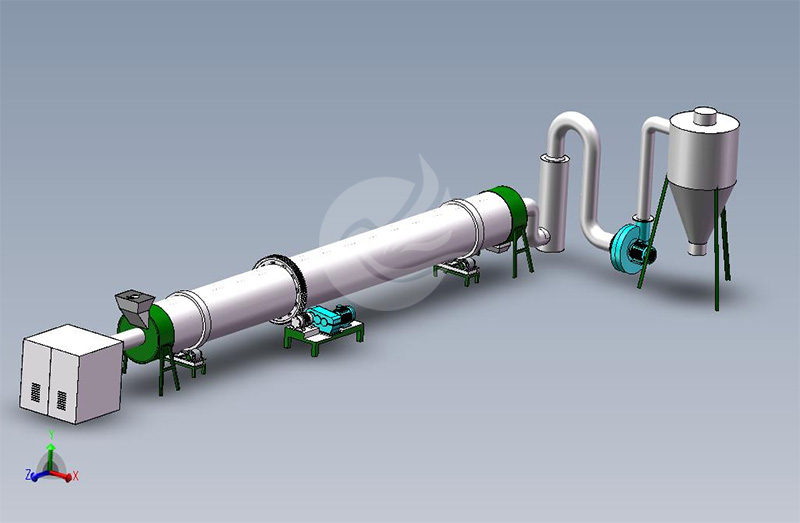

01Rotating cylinder:The material from the high end and gradually moves to the low end with the rotation of the cylinder.
02High-temperature calcination: Fuel is burned to produce high-temperature flue gas, which is exchanged with the material in the cylinder.
03Material reaction: In a high temperature environment, diatomite and kaolin undergo physicochemical reactions such as dehydration and crystal transformation.
Continuous calcination,high processing capacity and high production efficiency.
Suitable for calcining various materials, such as diatomite, kaolin, limestone etc.
The calcination temperature can be accurately controlled by adjusting fuel supply and air flow.
The calcined material has good physical and chemical properties and stable quality.
Equipped with a dust removal system to reduce dust emissions, meeting environmental standards.
1.Building materials: used to produce lightweight thermal insulation materials and decorative materials.
2.Refractory materials: used to make lightweight refractory bricks, refractory castables etc.
3.Ceramic industry:used to produce material for ceramic body and glaze.
4.Refractory materials: used to produce lightweight refractory bricks, refractory castables etc.
|
Model |
Speed （r/min.） |
Inclination （%） |
Production Capacity （t/h） |
Reducer Model |
Motor Model |
Power（kw） |
Number of Supports |
Weight （T） |
|
Ø1.6*32 |
0.58-2.85 |
4 |
2 |
ZQ75-50 |
YCT250-4A |
18.5 |
3 |
46.8 |
|
Ø1.6*36 |
0.53-1.59 |
4 |
2.5-3 |
ZQ110-7 |
YCT250-4B |
22 |
3 |
57 |
|
Ø1.9*39 |
0.53-1.59 |
4 |
3-3.4 |
ZS125-7 |
YCT315-4A |
37 |
3 |
71.79 |
|
Ø2.2*45 |
0.214-1.64 |
3.5 |
4-5 |
ZS125-5 |
YCT355-4B |
45 |
3 |
130.7 |
|
Ø2.5*50 |
0.62-1.5 |
3.5 |
5-6 |
ZS145-1 |
YCT355-4A |
55 |
3 |
167.5 |
|
Ø2.8*55 |
0.62-1.5 |
3.5 |
6-7 |
ZS165-6 |
YCT355-4B |
75 |
3 |
215.6 |
|
Ø3.0*60 |
0.5-1.5 |
3.5 |
7-9 |
ZS165-3 |
ZSN280-11B |
125 |
4 |
310.9 |
|
Ø3.2*64 |
0.4-1.5 |
3.5 |
8-10 |
ZL130-16 |
ZSN280-11B |
190 |
4 |
337.8 |
|
Ø3.5*70 |
0.4-1.5 |
3.5 |
12-14 |
ZSY1500-40 |
ZSN315-082 |
280 |
4 |
394.6 |
|
Ø4*80 |
0.4-1.5 |
3.5 |
16-20 |
ZSY630-35.5 |
ZSN315-12 |
355 |
4 |
564.8 |
