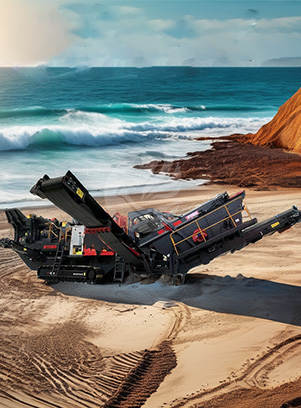

Crawler Mobile Screening Station

The track-mounted mobile vibrating screen is a highly efficient and flexible mobile screening device that uses a tracked self-propelled system and integrates a vibrating screen, feeder, conveyor belt, and intelligent control system.

It is suitable for various applications, including sand and gravel aggregate grading, mineral pre-screening, construction waste sorting, coal, soil, and other material screening.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

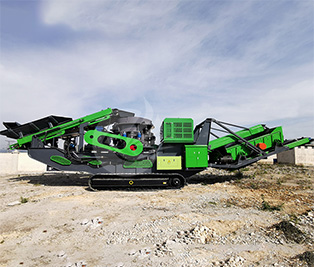

Crawler Mobile Screening Station

01 Multi-layer vibrating screen: 2-4 layers of screen mesh configuration, high screening efficiency, large processing capacity.

02 Track walking system: Fully hydraulic drive, suitable for complex terrain operations.

03 Intelligent control system: Touch screen operation, real-time monitoring of screening status.

04 Power system: Diesel/electric dual power options available, suitable for different operating environments.

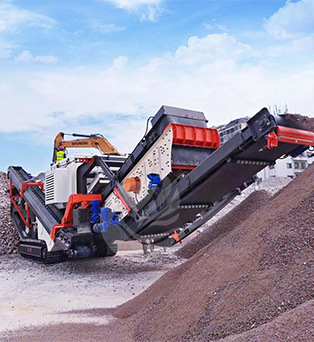

Performance Advantages

Excellent Mobility and Adaptability

Multi-layer screen mesh design: Up to 4 layers of screen mesh can be configured, enabling multi-stage screening in a single pass.

High processing capacity with screening accuracy exceeding 95%.
Exceptional Mobility

Track-mounted self-propelled: No trailer required,freely movable at the worksite.

Rapid relocation: operational within 15 minutes after setup.

Adapts to complex terrain with a climbing angle of up to 25°.
Intelligent Control System

Touchscreen operation: Parameters can be set with a single button, making operation simple.

Automatic adjustment: Vibration parameters are automatically optimized based on material characteristics.
Energy-efficient and Environmentally Friendly

Low-noise design: Operating noise level <70 dB.

Dust suppression system: Optional spray devices available.

Low energy consumption: 20-30% more energy-efficient than traditional screening equipment.
Easy Maintenance

Modular design: Quick and convenient screen mesh replacement.

Ventralized lubrication system: Automatic lubrication of critical components.

Easy maintenance: Hydraulic opening design facilitates maintenance.

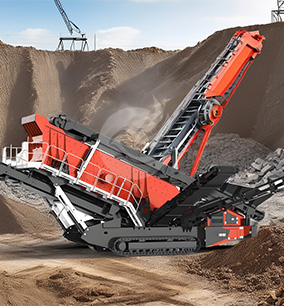

Application Areas

1.Construction industry: crushing waste concrete, masonry etc. into recycled aggregate for new construction projects.

2. Mining industry: used for crushing ores in mining, which is convenient for subsequent processing and transportation.

3. Water conservancy project: used for crushing large stone materials, which is used in dam,riverbank protection and other projects.

4. Metallurgical industry: used to crush metallurgical slag, which is convenient for subsequent metal extraction and reuse.

5. Chemical industry: used to crush chemical raw materials.

6. Environmental protection: used to process solid waste to realize the resource recycling.

Technical Parameters

Crawler Mobile Screening Station

Model	Feeder	Vibating Screen	Belt Conveyor	1_st Layer Discharge Belt	2_ndLayer Discharge Belt	3_rdLayer Discharge Belt	Transfer Belt	Underscreen Belt	Production Capacity
MH12	1520	3yk1247	B800*9m	B500*5.5m	B500*6.5m	B500*6.5m	B500*2.5m	B800*6.5m	60-150T/H
MH15T	1830	2yk1548	B1000*11m	B500*6.5m	B500*7.5m	B500*7.5m	B500*2.5m	B800*8.5m	120-150T/H
MH15	1830	3yk1548	B1000*11m	B500*6.5m	B500*7.5m	B500*7.5m	B500*2.5m	B800*8.5m	120-150T/H
MH18T	1840	2yk1860	B1000*15m	B500*6.5m	B500*7.5m	B500*7.5m	B500*2.8m	B1000*10m	150-350T/H
MH18	1840	3yk1860	B1000*15m	B500*6.5m	B500*7.5m	B500*7.5m	B500*2.8m	B1000*10m	150-350T/H
MH20T	2040	2yk2060	B1000*15m	B500*7.5m	B650*7.5m	B650*7.5m	B650*2.8m	B1000*10m	200-400T/H
MH20	2040	3yk2060	B1000*15m	B500*7.5m	B650*7.5m	B650*7.5m	B650*2.8m	B1200*10m	200-400T/H
