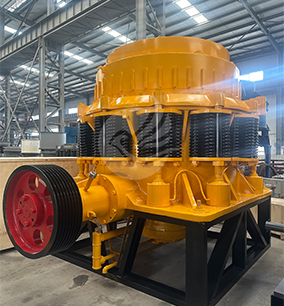

High-efficiency spring cone crusher realizes efficient and stable crushing operation by spring safety device and hydraulic adjustment device.

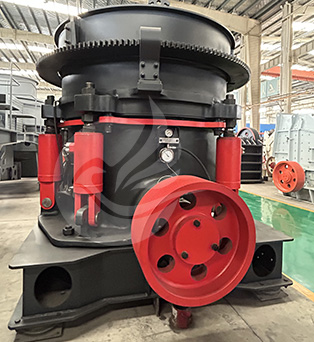

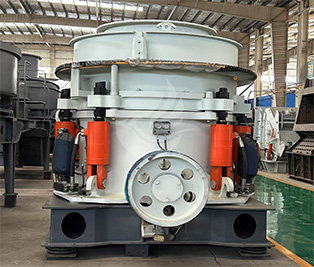

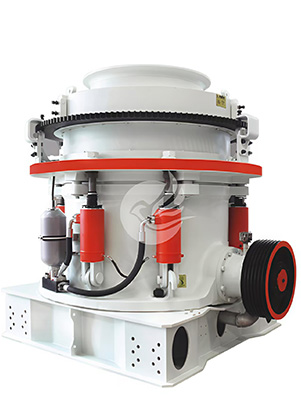

CH single-cylinder hydraulic cone crusher and HP multi-cylinder hydraulic cone crusher adopts hydraulic system to realize efficient and stable crushing operation,which are suitable for crushing various ores and rocks of medium and above-medium hardness.

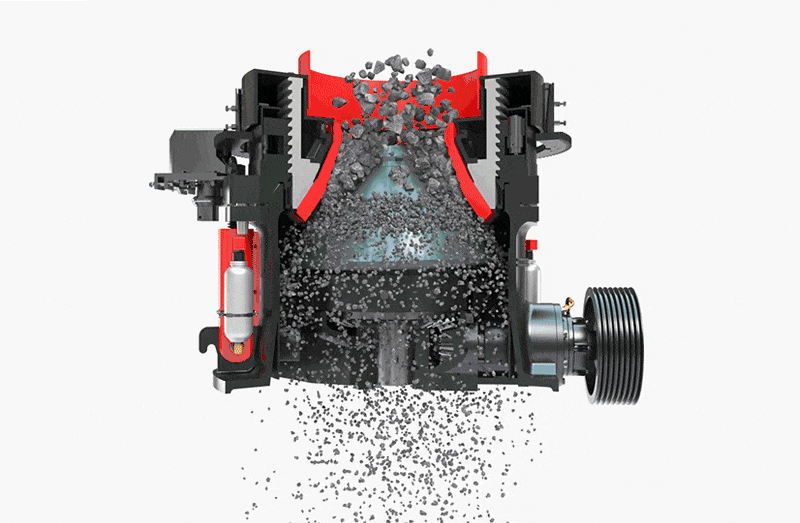

It adopts the principle of laminated crushing, offering large crushing ratio and high output.
The crushed materials have uniform size with a high proportion of cubic-shaped particles.
Modular design, easy to disassemble and maintain.
Optimized design reduces energy consumption, dust and noise.
The hydraulic system realizes automatic adjustment and overload protection, easy to operate.
1. Mining: crushing various ores.
2. Metallurgy: processing metallurgical raw materials.
3. Building materials: crushing building stones.
4. Highway and railway: crushing roadbed materials.
5. Water conservancy and chemical industry: processing related raw materials.
| Standard Model |
Mantle Diameter（mm） | Chamber Type | Feed Opening Size（mm) | Discharge Opening Size （mm） |
Spindle Speed（r/min.） | Power （kw） |
Production Capacity（t/h） | Weight（T） | Overall Dimension （mm） |
|
| Closed Side Setting (CSS) |
Open Side Setting (OSS) |
|||||||||
| CS-75B | 900 | fine type | 83 | 102 | 9-12 | 580 | 75 | 45-91 | 15 | 2821*1880*2164 |
| coarse type | 159 | 175 | 13-38 | 59-163 | ||||||
| CS-110B | 1200 | fine type | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 20 | 2821*1974*2651 |
| medium type | 156 | 156 | 13-38 | 100-200 | ||||||
| coarse type | 178 | 191 | 19-51 | 141-308 | ||||||
| CS-160B | 1295 | fine type | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 27 | 2800*2342*2668 |
| medium type | 188 | 210 | 16-38 | 132-253 | ||||||
| coarse type | 216 | 241 | 19-51 | 172-349 | ||||||
| CS-240B | 1650 | fine type | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 55 | 3911*2870*3771 |
| medium type | 213 | 241 | 22-51 | 258-417 | ||||||
| coarse type | 241 | 268 | 25-64 | 299-635 | ||||||
| CS-315B | 2134 | fine type | 253 | 278 | 129-38 | 435 | 315 | 381-726 | 110 | 4613*3251*4732 |
| medium type | 303 | 334 | 25-51 | 608-998 | ||||||
| coarse type | 334 | 369 | 31-64 | 789-1270 | ||||||
| Short Head Model | Mantle Diameter（mm） | Chamber Type | Feed Opening Size (mm) | Discharge Opening Size （mm） |
Spindle Speed（r/min.） | Power （kw） |
Production Capacity（t/h） | Weight（T） | Overall Dimension （mm） |
|
| Closed Side Setting (CSS) |
Open Side Setting (OSS) |
|||||||||
| CS-75D | 914 | fine type | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 15 | 2821*1880*2410 |
| Coarse type | 33 | 60 | 3-16 | 27-100 | ||||||
| CS-110D | 1218 | fine type | 29 | 57 | 5-16 | 485 | 110 | 50-132 | 20 | 2560*1942*2928 |
| medium type | 44 | 73 | 10-16 | 90-145 | ||||||
| coarse type | 56 | 89 | 13-19 | 141-181 | ||||||
| CS-160D | 1295 | fine type | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 27 | 2800*2342*2668 |
| medium type | 54 | 89 | 6-16 | 82-163 | ||||||
| coarse type | 70 | 105 | 10-25 | 109-227 | ||||||
| CS-240D | 1676 | fine type | 35 | 70 | 5-13 | 485 | 240 | 90-209 | 55 | 3917*2870*3771 |
| medium type | 54 | 89 | 6-19 | 136-281 | ||||||
| coarse type | 98 | 133 | 10-25 | 190-336 | ||||||
| Model | Chamber Type | Max. Feed Opening Size（mm） | Min. Discharge Opening Size （mm） |
Max. Installer Power （kw） |
| CS420 | S1 (extra coarse type) | 240 | 22 | 90 |
| S2 (medium coarse type) | 200 | 19 | ||
| CH420 | H1 (fine type) | 135 | 10 | |
| H2 (medium fine type) | 65 | 8 | ||
| H3 (extra fine type) | 38 | 4 | ||
| CS430 | S1 (extra coarse type) | 260 | 25 | 160 |
| S2 (medium coarse type) | 300 | 22 | ||
| S3 (coarse type) | 235 | 19 | ||
| CH430 | H1 (fine type) | 185 | 13 | |
| H2 (medium fine type) | 90 | 10 | ||
| H3 (extra fine type) | 50 | 6 | ||
| CS440 | S1 (extra coarse type) | 450 | 35 | 250 |
| S2 (medium coarse type) | 400 | 29 | ||
| S3 (coarse type) | 300 | 25 | ||
| CH440 | H1 (fine type) | 215 | 16 | |
| H2 (medium fine type) | 110 | 13 | ||
| H3 (extra fine type) | 70 | 8 | ||
| CS660 | S1 (extra coarse type) | 560 | 41 | 315 |
| S2 (medium coarse type) | 500 | 38 | ||
| CH660 | H1 (fine type) | 275 | 16 | |
| H2 (medium fine type) | 135 | 16 | ||
| H3 (extra fine type) | 65 | 13 | ||
| CH870 | H1 (fine type) | 300 | 22 | 520 |
| H2 (medium fine type) | 155 | 19 | ||
| H3 (extra fine type) | 80 | 10 | ||
| CH890 | H1 (fine type) | 370 | 25 | 750 |
| H2 (medium fine type) | 195 | 22 | ||
| H3 (extra fine type) | 85 | 10 |
| Model | Chamber Type | Feed Opening Size of Open Side （mm） |
Feed Opening Size of Closed Side | Min. Discharge Opening Size （mm） |
Production Capacity（t/h） | Max. Installed Power （kw） |
| HP200 | C2（coarse type） | 235 | 190 | 19 | 65-250 | 160 |
| M（medium type） | 171 | 120 | 16 | |||
| F1（fine type） | 150 | 95 | 13 | |||
| F2（extra fine type） | 116 | 70 | 8 | |||
| HP300 | C1（extra coarse type） | 265 | 230 | 25 | 85-440 | 220 |
| C2（coarse type） | 240 | 210 | 20 | |||
| M（medium type） | 190 | 150 | 15 | |||
| F1（fine type） | 145 | 105 | 11 | |||
| F2（extra fine type） | 120 | 80 | 8 | |||
| HP400 | C1（extra coarse type） | 260 | 290 | 30 | 135-625 | 315 |
| C2（coarse type） | 310 | 250 | 25 | |||
| M（medium type） | 260 | 196 | 20 | |||
| F1（fine type） | 182 | 110 | 13 | |||
| F2（extra fine type） | 135 | 90 | 10 | |||
| HP500 | C1（extra coarse type） | 370 | 330 | 38 | 200-790 | 400 |
| C2（coarse type） | 320 | 290 | 28 | |||
| M（medium type） | 245 | 210 | 22 | |||
| F1（fine type） | 180 | 130 | 13 | |||
| F2（extra fine type） | 150 | 95 | 10 | |||
| HP800 | C1（extra coarse type） | 450 | 352 | 38 | 265-1200 | 630 |
| C2（coarse type） | 373 | 298 | 32 | |||
| M（medium type） | 340 | 375 | 25 | |||
| F1（fine type） | 280 | 230 | 16 | |||
| F2（extra fine type） | 235 | 150 | 10 |
