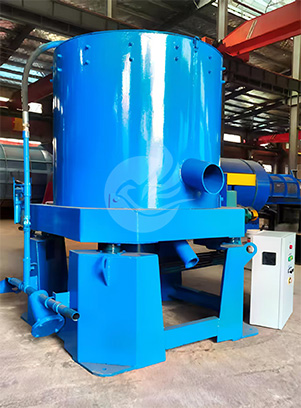

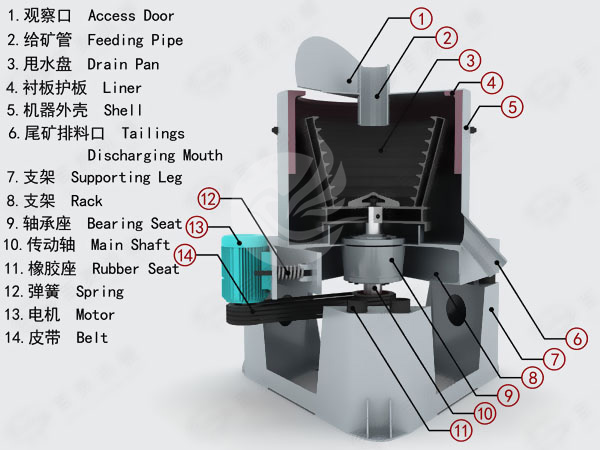

Centrifugal concentrator is a type of high efficient gravity separation equipment, which generates strong centrifugal force through high speed rotation, so that the mineral particles in the pulp are separated according to the density difference.
It is mainly used for the recovery of fine and microfine grained minerals.
Powerful centrifugal force can effectively separate minerals with small density difference, especially suitable for separating fine and micro-fine grained minerals.
Used for separating various heavy minerals and it is able to process mineral particles ranging from tens of microns to several millimeters.
The automatic control system can adjust the rotational speed, feed amount and other parameters in real time.
Energy consumption is relatively low, no need to add chemicals, reduce environmental pollution.
1.Gold ore: recover fine-grained gold.
2.Tin and tungsten ore: separate fine-grained cassiterite and wolframite.
3.Tailings processing: recover valuable minerals from tailings.
4.Other heavy minerals: such as ilmenite, chromite etc.
|
Model |
STL30 |
STL60 |
STL80 |
STL100 |
STL120 |
|
Production Capacity（t/h） |
2-3 |
10-15 |
35-40 |
80-120 |
100-130 |
|
Feed Particle Size（mm） |
0-4 |
0-6 |
0-6 |
0-6 |
0-6 |
|
Feed Pulp Concentration（%） |
0-50% |
0-50% |
0-50% |
0-50% |
0-50% |
|
Backwash Water Volume（t/h） |
4-6 |
10-15 |
17-25 |
40-60 |
70-80 |
|
Concentrate Output（kg/time） |
10-20 |
30-40 |
60-70 |
70-80 |
100-120 |
|
Motor Power（kw） |
1.5 |
7.5 |
15 |
18.5 |
22 |
|
Cone Speed（r/min.） |
600 |
460 |
400 |
360 |
360 |
|
Water Pressure（Mpa） |
0.12 |
0.25 |
0.35 |
0.4 |
0.5 |
|
Overall Dimension（mm） |
1180*1140*1250 |
1970*1670*1750 |
2300*1800*2200 |
2500*2000*2400 |
2700*2200*2600 |
|
Weight（T） |
400 |
1300 |
2000 |
2500 |
3000 |
