Tube Ball Mill(Cement Mill)

Tube ball mill(Cement mill) is the key equipment in cement production, mainly used to grind raw materials such as clinker and gypsum into fine powder to make cement, and its performance directly affects the cement quality and production efficiency.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

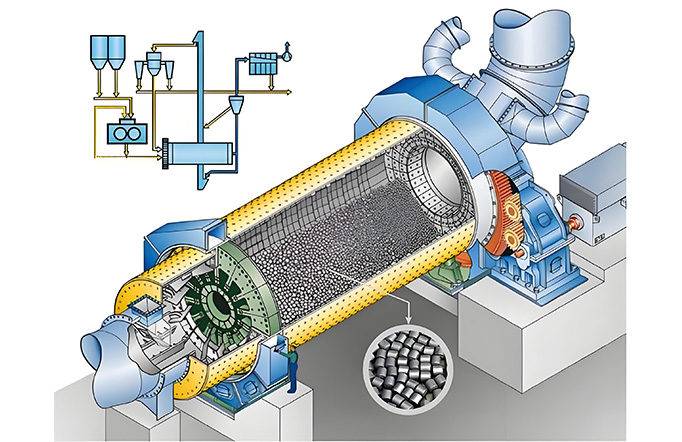

Working Principle

Performance Advantages

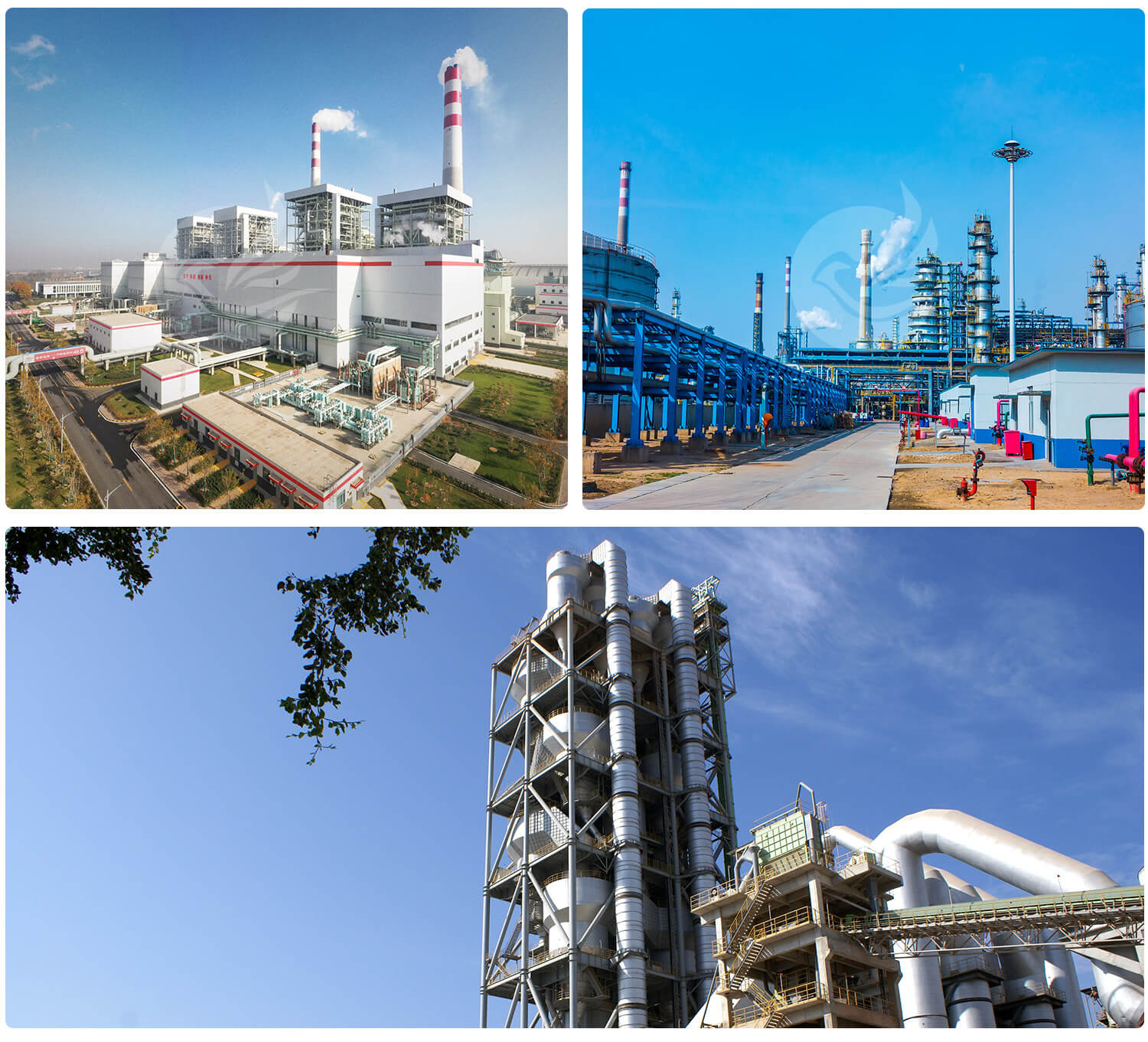

Application Areas

1. Mainly used in cement production.

2. It can also be used in metallurgy, chemical industry and other industries for material grinding.

Cement-Mill-7

Technical Parameters

Product Specification Production Capacity
（t/h）		 Cylinder Speed（r/min.） Driving Form Motor Reducer Weight
（T）		 Remark
Type Power（kw） Type Speed Ratio
Ø2.2*7 18 21.4 edge drive JR158-8 380 ZD70 5 48 Excluding Main Drive
Ø2.2*7.5 12-13 21.4 edge drive JR1510-8 380 ZD70 5 55
Ø2.4*7 22-24 20.4 edge drive JRQ1510-8 475 ZD70 5 67
Ø2.4*8 26-28 20.14 edge drive JR1512-8 50 ZD80 6.3 89
Ø2.4*10 20 20 edge drive YR560-8 5560 RZD75 4.8 91
Ø2.4*12 23 19.4 edge drive YR800-8/1180 800 JD800 5.6 120
Ø2.4*13 25 19.71 edge drive YR800-8/1180 800 D110 123.53 96
Ø2.4*13 25 20.4 edge drive YR800-8/1180 YR1000 800 MF710 6.3 119
Ø2.6*13 30 19.7 edge drive YR1000-8/1180 1000 JDX800 6.3 164
Ø3*9 33 18 edge drive YR1000-8/1180 1000 MBY800 6.3 157
Ø3*11 42-50 18 central drive YR630 1250 MBY900 41.1 110
Ø3*11 42-50 17.86 edge drive YR1250-8/1430 1250 MFY125A 5 175
Ø3*12 34-37 17.86 edge drive YR1250-8/1430 1250 MBY800 5 185
Ø3*13 35-38 17.86 edge drive YR1250-8/1430 1250 MBY900 5 188
Ø3.2*12 45-50 17.86 edge drive YR1400-8/1430 1400 JDX900 5 195
Ø3.2*13 50-55 17.86 edge drive YR1600-8/1430 1600 MBY900 5 205
Ø3.4*8.5 50 17.2 central drive YR1250-8 1250 MBY900 113
Ø3.5*11 65-70 16.5 central drive YR1400-8 1800 JS1250 141
Ø3.8*13 60 16.3 central drive YR800-8 2000 MFY200A 61.25 230
Ø4.2*11 90 15.75 central drive YRKK900-8 3150 MFY320A 252
Ø4.2*13 100 15.8 central drive YRKK900-8 3150 260
