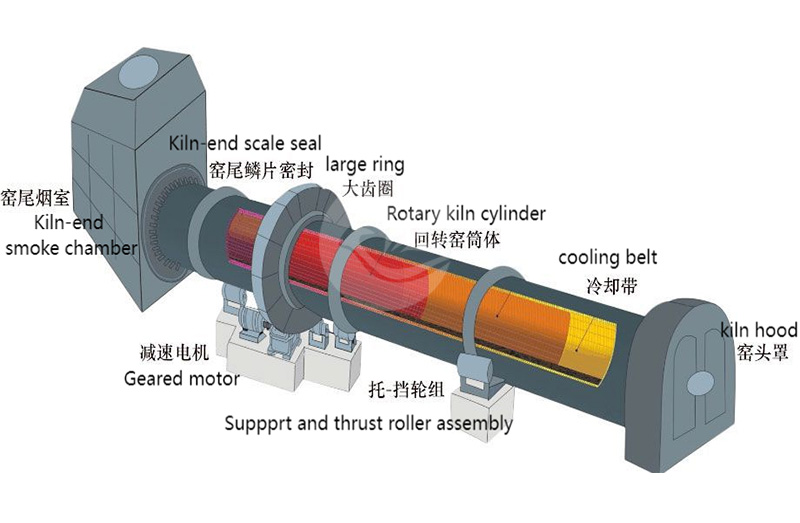

01Rotating cylinder:Iron ore enters from the high end and gradually moves to the low end with the rotation of the cylinder.
02High-temperature calcination: Fuel is burned to produce high-temperature flue gas, which is exchanged with the material in the cylinder.
03Expansion and sintering: In the high temperature environment, the organic matter in the raw material is burned,while the mineral components undergo expansion and sintering to form the porous structure of the ceramic grains.
Continuous calcination,high processing capacity and high production efficiency.
Suitable for calcining various materials, such as diatomite, kaolin, limestone etc.
The calcination temperature can be accurately controlled by adjusting fuel supply and air flow.
The calcined material has good physical and chemical properties and stable quality.
Equipped with a dust removal system to reduce dust emissions, meeting environmental standards.
1.Building materials: used for producing lightweight concrete, blocks, wall panels etc.
2.Landscaping: used for creating lightweight soil, rooftop greening materials etc.
3.Wastewater treatment: used for manufacturing biofilter media for wastewater treatment.
4.Refractory materials: used to produce lightweight refractory bricks, refractory castables etc.
| Model | Ceramsite Production Capacity | Inclination（°） | Cylinder Speed (r/min.) |
Motor | Reducer Model | ||
| Hourly Output（m3/h） | Annual Output（m3/y） | Model | Power(kw) | ||||
| Preheating Kiln Ø1.25*18 | 2.95-3.94 | 23-31,2 thousand | 4 | 1.0-5.0 | YCT225-4A | 11 | ZQ500 |
| Calcining Kiln Ø1.6*14 | 2.95*3.94 | 23-31,2 thousand | 4 | 1.0-5.0 | YCT225-4B | 15 | ZQ650 |
| Preheating Kiln Ø1.55*20 | 4.36*5.81 | 34,5-46 thousand | 4 | 1.0-5.0 | YCT250-4A | 18.5 | ZQ650 |
| Calcining Kiln Ø1.9*16 | 4.36*5.81 | 34,5-46 thousand | 4 | 1.0-5.0 | YCT250-4A | 22 | ZQ750 |
| Preheating Kiln Ø1.8*22 | 5.9-7.87 | 48-62,5 thousand | 4 | 1.0-5.0 | YCT250-4B | 22 | ZQ750 |
| Calcining Kiln Ø2.2*18 | 5.9*7.87 | 48-62,5 thousand | 4 | 1.0-5.0 | YCT250-4B | 22 | ZQ750 |
| Preheating Kiln Ø2.0*24 | 7.42-9.88 | 58-78 thousand | 4 | 1.0-3.0 | YCT280-4B | 30 | ZSY224 |
| Calcining Kiln Ø2.5*20 | 7.42-9.88 | 58-78 thousand | 4 | 1.2-3.6 | YCT315-4A | 37 | ZSY224 |
| Preheating Kiln Ø3.0*20-Ø2.5*12 |
13.13-17.51 | 103,9-138,7 thousand | 4 | 0.8-2.7 | YCT355-4B | 75 | ZSY1450 |
| Calcining Kiln Ø3.0*22 | 13.13*17.51 | 103,9-138,7 thousand | 4 | 1.1-3.3 | YCT355-4A | 55 | ZQ1250 |
