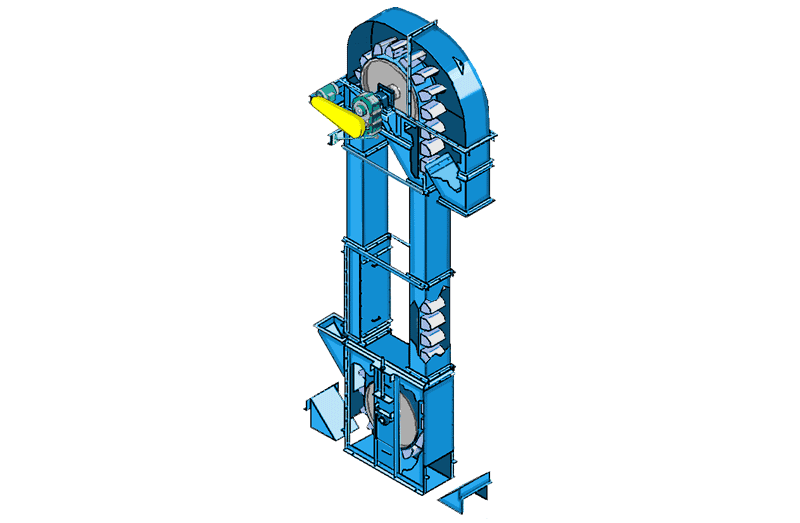

Bucket elevator is a kind of continuous conveying equipment for vertical or inclined transportation of powdery, granular and small lumpy materials (such as coal, cement, stone, sand, clay ore etc.).
It is characterized by small footprint, high conveying efficiency and smooth operation.
Vertical lifting, small footprint, high conveying efficiency.
Enclosed structure, reduce dust pollution.
Simple structure, easy maintenance and inspection.
Centrifugal or gravity discharge can be selected according to the material characteristics.

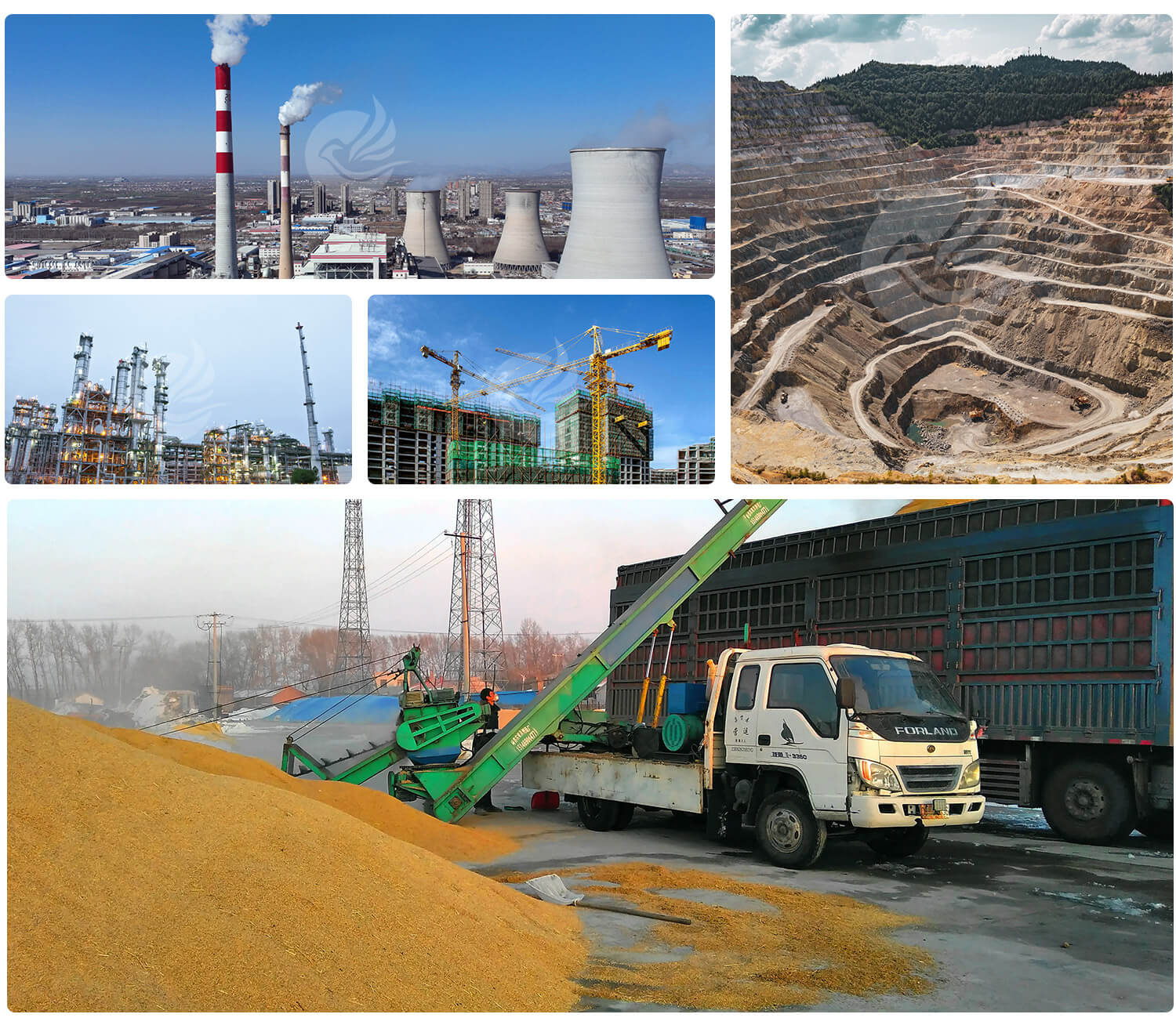

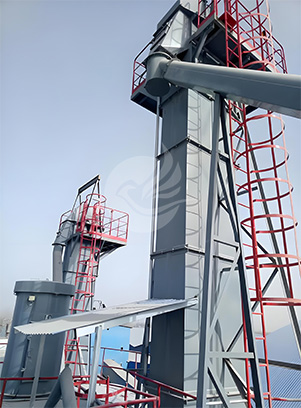

1.Mining industry: used for lifting materials such as ore and coal.
2.Building materials: used for lifting materials such as cement, limestone, sand and gravel.
3.Chemical industry: used for lifting materials such as fertilizer and salt.
4.Grain industry: used for lifting materials such as grain and feed.
5.Power industry: used for lifting coal in coal-fired power plants.

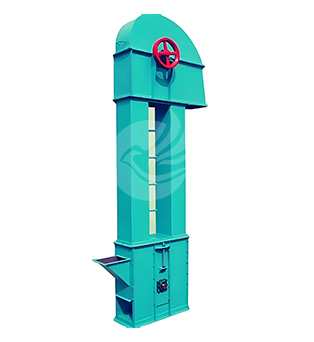

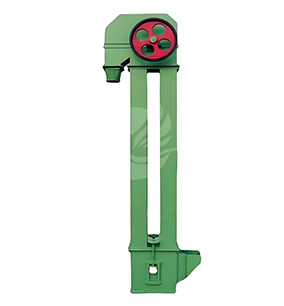

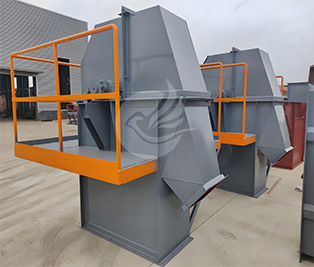

| Model | TD250 | TD315 | TD400 | TD500 | ||||||||||||
| Bucket Type | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd |
| Conveying Capacity（m3/h） | 20 | 36 | 38 | 59 | 28 | 50 | 42 | 67 | 40 | 76 | 68 | 10 | 63 | 116 | 96 | 154 |
| Bucket Volume（L） | 1.1 | 2.2 | 3 | 4.6 | 1.9 | 3.5 | 3.7 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 | 4.8 | 9 | 9.3 | 14 |
| Bucket Speed（m/s） | 1.6 | 1.8 | ||||||||||||||
| Sprocket Speed（r/min.） | 61 | 55 | ||||||||||||||
| Model | Max. Lifting Height（m） | Conveying Capacity（m3/h） | Max. Particle Size（mm） | Bucket Distance（mm） | Motor Power （kw） |
| TH160 | 25 | 7-12 | 15-20 | 400 | 3-4 |
| TH200 | 28 | 8-15 | 20-30 | 500 | 3-5.5 |
| TH250 | 30 | 10-25 | 25-35 | 500 | 4-7.5 |
| TH300 | 30 | 25-35 | 30-40 | 500 | 5.5-11 |
| TH315 | 40 | 30-40 | 35-45 | 512 | 5.5-15 |
| TH400 | 40 | 45-60 | 40-55 | 512 | 11-22 |
| TH500 | 40 | 65-80 | 50-60 | 512 | 15-30 |
| TH600 | 40 | 100-120 | 60-65 | 688 | 18.5-37 |
| Model | Conveying Capacity（m3/h） | Bucket Speed（m/s） | Main Shaft Speed （r/min.） |
Particle Size （mm） |
Bucket | ||
| Volume（L） | Width（mm） | Distance（mm） | |||||
| NE15 | 15 | 0.5 | 15.54 | ＜40 | 2.5 | 250 | 203 |
| NE30 | 32 | 16.45 | ＜50 | 7.8 | 300 | 305 | |
| NE50 | 60 | 16.45 | ＜50 | 15.7 | 300 | 305 | |
| NE100 | 110 | 14.13 | ＜70 | 35 | 400 | 400 | |
| NE150 | 170 | 14.13 | ＜70 | 52.2 | 600 | 400 | |
| NE200 | 210 | 10.9 | ＜100 | 84.6 | 600 | 500 | |
| NE300 | 320 | 10.9 | ＜100 | 127.5 | 600 | 500 | |
| NE400 | 380 | 8.3 | ＜120 | 182.5 | 700 | 600 | |
| NE500 | 470 | 7.1 | ＜120 | 260.9 | 700 | 700 | |
| NE600 | 600 | 7.1 | ＜120 | 330.2 | 700 | 700 | |
| NE800 | 800 | 6.2 | ＜140 | 501.8 | 800 | 800 | |
