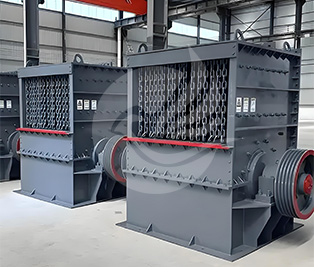

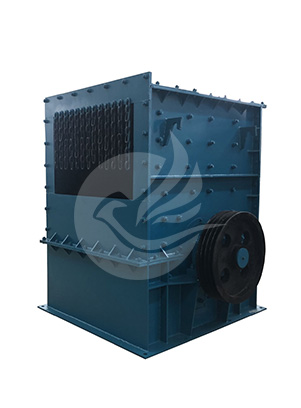

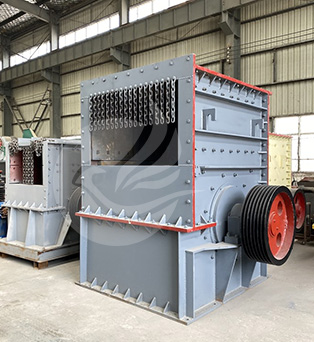

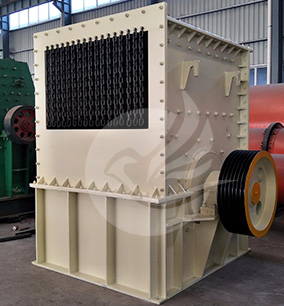

Box Crusher

Box crusher is a high efficient and energy-saving crushing equipment, mainly used for crushing medium-hardness materials, such as limestone, coal gangue, shale and so on.

It can directly crush materials with size 450-1200mm into powder.With automatic feeding,it avoids blockage and jamming,which can also be used as secondary crushing equipment.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

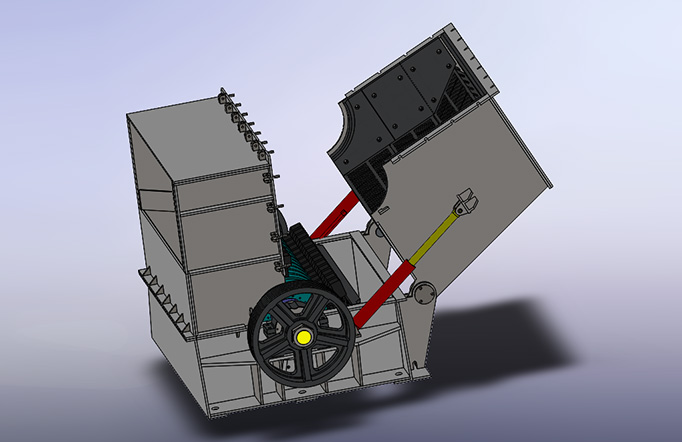

Working Principle

Box Crusher

01 The material enters into the crushing chamber from the feeding inlet.

02 Impact Crushing: The high-speed rotating rotor drives the hammer head to impact the material, which is thrown against the liner plate for further crushing.

03 Repeated Crushing: The material is crushed by repeated impacts between the hammer head and the liner plate.

04Screening: The crushed material is discharged through the screen plate, and the material that dose not meet the size requirement continues to be crushed.

05Discharge: Material that meets the size requirement is discharged from the bottom.

Performance Advantages

High-efficiency Crushing

It utilizes impact energy to crush materials, offering large crushing ratio and high efficiency.
Uniform Product Size

The crushed material has uniform size with a high proportion of cubic-shaped particles.
Simple Structure

Compact structure, easy to maintain.
Low Energy Consumption

High crushing efficiency, low energy consumption.
Strong Adaptability

It is suitable for various medium-hardness materials.

Application Areas

1.Mining: crushing various ores.

2. Building materials: crushing building stones.

3. Metallurgy: processing metallurgical raw materials.

4. Chemical industry: crushing chemical raw materials.

5. Highway and railroad: crushing roadbed materials.

6. Water conservancy: processing related raw materials.

Technical Parameters

Model	800*800	1000*1000	1200*1200	1400*1400	1600*1600	1800*1800
Roller Diameter（mm）	Ø800	Ø1000	Ø1200	Ø1400	Ø1600	Ø1800
Roller length（mm）	800	1000	1200	1400	1600	1800
Production Capacity（t/h）	70-100	90-120	130-160	190-210	250-300	300-400
Feed Particle Size（mm）	≤600	≤800	≤900	≤1000	≤1000	≤1200
Stone Types	Various types of stone with compressive strength≤300MPa
Power（kw）	55-75	75-90	90-132	132-160	160-220	280-315
