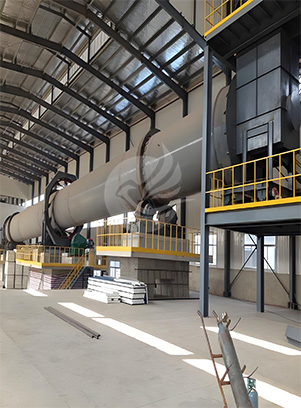

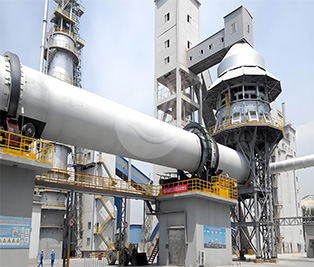

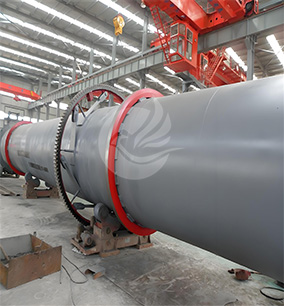

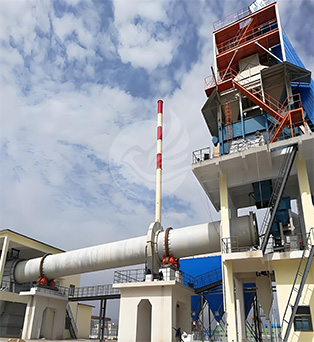

Bauxite rotary kiln is a type of industrial equipment specially used for calcining bauxite.
Through high-temperature calcination, it can remove water, organic matter and impurities in bauxite, increase its alumina content, and provide high-quality raw materials for the subsequent production of alumina by the Bayer method or sintering method.
01Rotating cylinder:Bauxite enters from the high end and gradually moves to the low end with the rotation of the cylinder.
02High-temperature calcination: Fuel is burned to produce high-temperature flue gas, which is exchanged with the material in the cylinder.
03Dehydration and decomposition: In a high temperature environment, water, organic matter and impurities are removed from the bauxite, while the aluminum hydroxide (Al(OH)3) in the bauxite decomposes into aluminum oxide (Al2O3).
Continuous calcination,high processing capacity and high production efficiency.
Suitable for calcining various materials, such as diatomite, kaolin, limestone etc.
The calcination temperature can be accurately controlled by adjusting fuel supply and air flow.
The calcined material has good physical and chemical properties and stable quality.
Equipped with a dust removal system to reduce dust emissions, meeting environmental standards.
1.Building materials: used to produce lightweight thermal insulation materials and decorative materials.
2.Refractory materials: used to make lightweight refractory bricks, refractory castables etc.
3.Ceramic industry:used to produce material for ceramic body and glaze.
4.Refractory materials: used to produce lightweight refractory bricks, refractory castables etc.
|
Model |
Production Capacity （t/h） |
Main Motor |
Main Reducer |
Weight (T) |
||
|
Model |
Power（kw） |
Model |
Speed Ratio |
|||
|
Ø1.9*39 |
72 |
YCT315-4A |
37 |
JZQ1250-7 |
48.57 |
71.79 |
|
Ø2.2*45 |
110 |
YCT315-4B |
45 |
ZS125-5 |
93.93 |
130.7 |
|
Ø2.5*50 |
180 |
YCT355-4B |
55 |
ZS145-1 |
122.8 |
167.5 |
|
Ø3*55 |
400 |
ZSN4-280-21B |
110 |
NZS995-90-Ⅵ-L |
90 |
280 |
|
Ø3.2*60 |
500 |
ZSN4-280-21B |
160 |
MSY56-28-Ⅱ |
28 |
330 |
|
Ø3.5*65 |
700 |
ZSN4-280-11B |
250 |
ZS500-40-Ⅴ |
40 |
368 |
|
Ø3.6*72 |
800 |
ZSN4-280-11B |
280 |
ZS177-5-Ⅱ |
79.2 |
419 |
|
Ø4*80 |
1200 |
ZSN4-355-09Z |
355 |
ZSY630-35.5-Ⅰ |
34.6 |
564.8 |
