Suitable for conveying heavy-duty materials such as ores, coal, limestone etc.
Capable of conveying high-temperature, wet, or corrosive materials.
The feeding speed can be adjusted using a frequency converter or mechanical speed control device.
Made of wear-resistant materials, resulting in low maintenance costs.
Suitable for harsh working conditions with strong impact resistance.

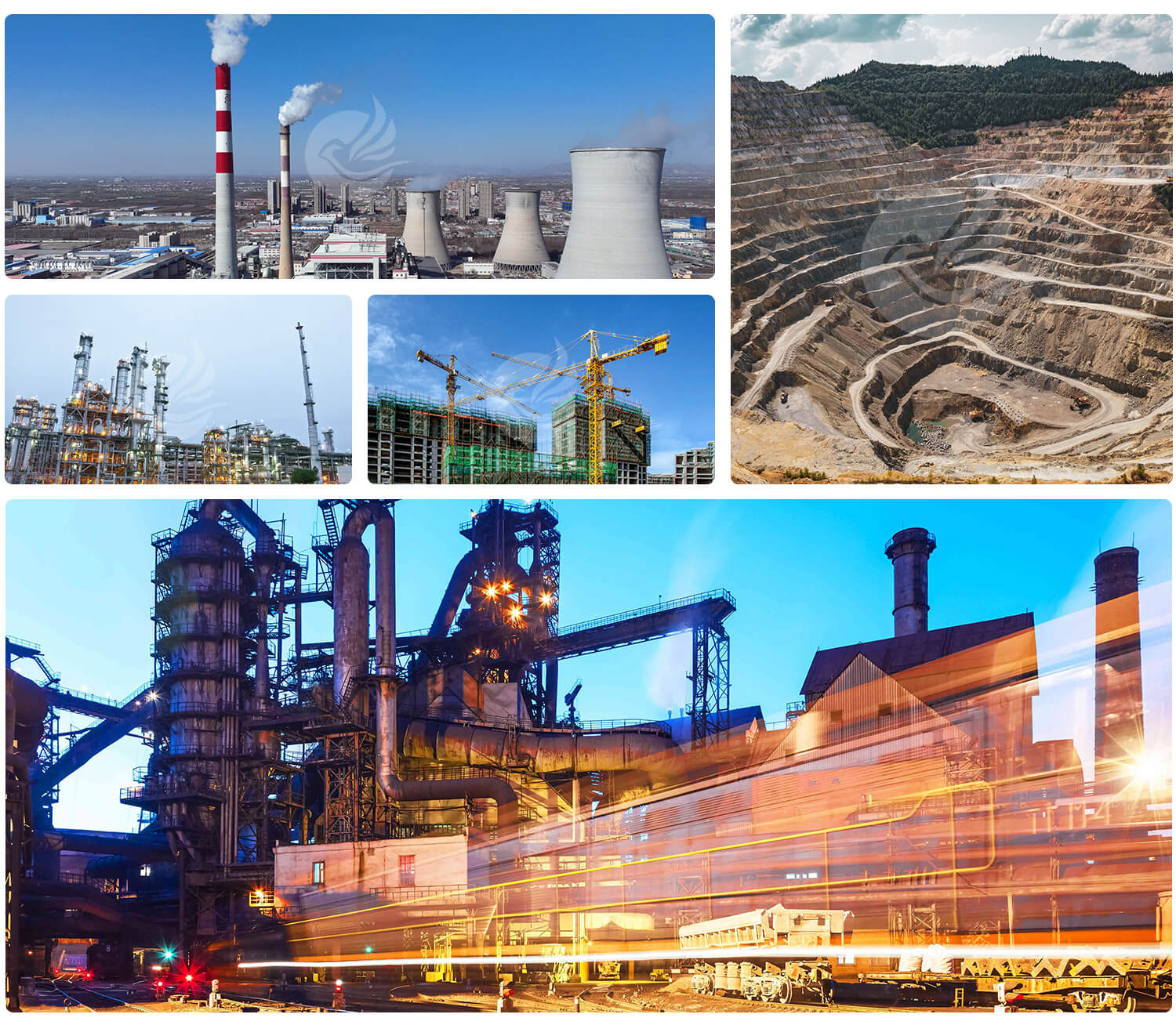

1.Mining: used for conveying and feeding materials such as ore and coal.
2.Metallurgy: used for the transportation of sintered ore, coke and other materials.
3.Building materials: used for conveying limestone, cement clinker and other materials.
4.Chemical industry: used for conveying fertilizer, salt and other materials.
5.Electric power: used for coal conveying in coal-fired power plants.
|
Model |
Apron Width （mm） |
Center Distance（mm） |
Feed Particle Size（mm） |
Production Capacity（t/h） |
Power （kw） |
|
BW80-L |
800 |
3-15 |
≤350 |
25-75 |
2.2 |
|
BW100-L |
1000 |
3-18 |
≤600 |
30-150 |
5.5-18.5 |
|
BW120-L |
1200 |
4-20 |
≤600 |
35-220 |
11-18.5 |
|
BW125-L |
1250 |
4-20 |
≤800 |
40-250 |
11 |
|
BW140-L |
1400 |
5-20 |
≤900 |
45-280 |
22 |
|
BW150-L |
1500 |
5-20 |
≤900 |
50-300 |
22-30 |
|
BW160-L |
1600 |
6-20 |
≤900 |
55-320 |
22 |
|
BW180-L |
1800 |
6-20 |
≤970 |
60-350 |
22-55 |
|
BW200-L |
2000 |
8-20 |
≤1500 |
100-450 |
45 |
|
BW220-L |
2200 |
8-20 |
≤1500 |
150-520 |
45 |
|
BW230-L |
2300 |
8-20 |
≤1500 |
200-700 |
45 |
|
BW240-L |
2400 |
8-20 |
≤1500 |
250-880 |
45 |
|
BW250-L |
2500 |
10-20 |
≤1500 |
300-1000 |
45 |
|
BZ160-L |
1600 |
6-20 |
≤800 |
≤270 |
30-45 |
|
BZ180-L |
1800 |
8-20 |
≤900 |
≤500 |
37-55 |
|
BZ200-L |
2000 |
8-20 |
≤1000 |
≤700 |
45-75 |
|
BZ220-L |
2200 |
8-20 |
≤1200 |
≤800 |
45-75 |
|
BZ230-L |
2300 |
8-20 |
≤1500 |
≤850 |
45-90 |
|
BZ240-L |
2400 |
10-20 |
≤1600 |
≤900 |
2*37(45) |
|
BZ250-L |
2500 |
10-20 |
≤1800 |
≤1000 |
2*45(55) |
