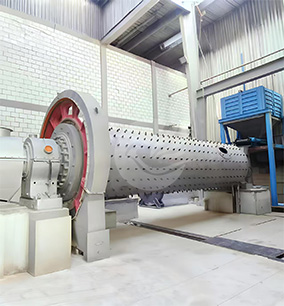

Air-swept Coal Mill

Air-swept coal mill is a key equipment in cement and power industries, which is used for drying and grinding coal powder.



By combining air-swept and grinding processes,the air-swept coal mill is an ideal equipment for coal powder preparation with reasonable structure and high powder efficiency.

Email WhatsApp
Working Principle Performance Advantages Application Areas Technical Parameters

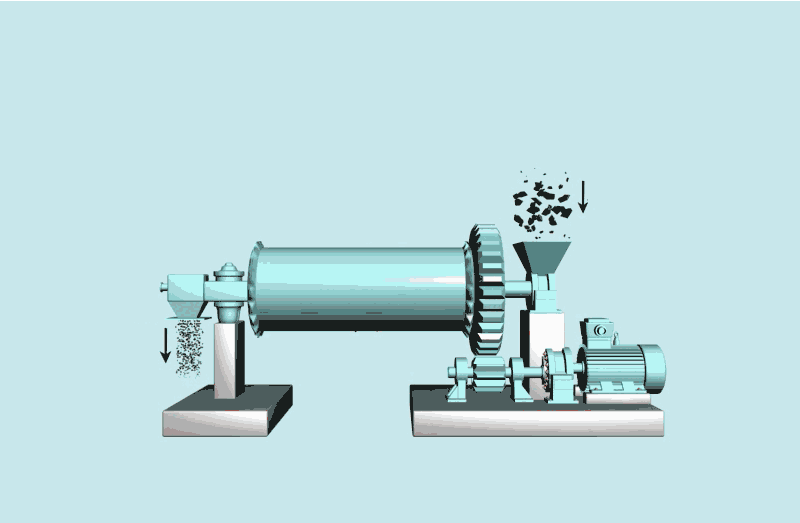

Working Principle

Performance Advantages

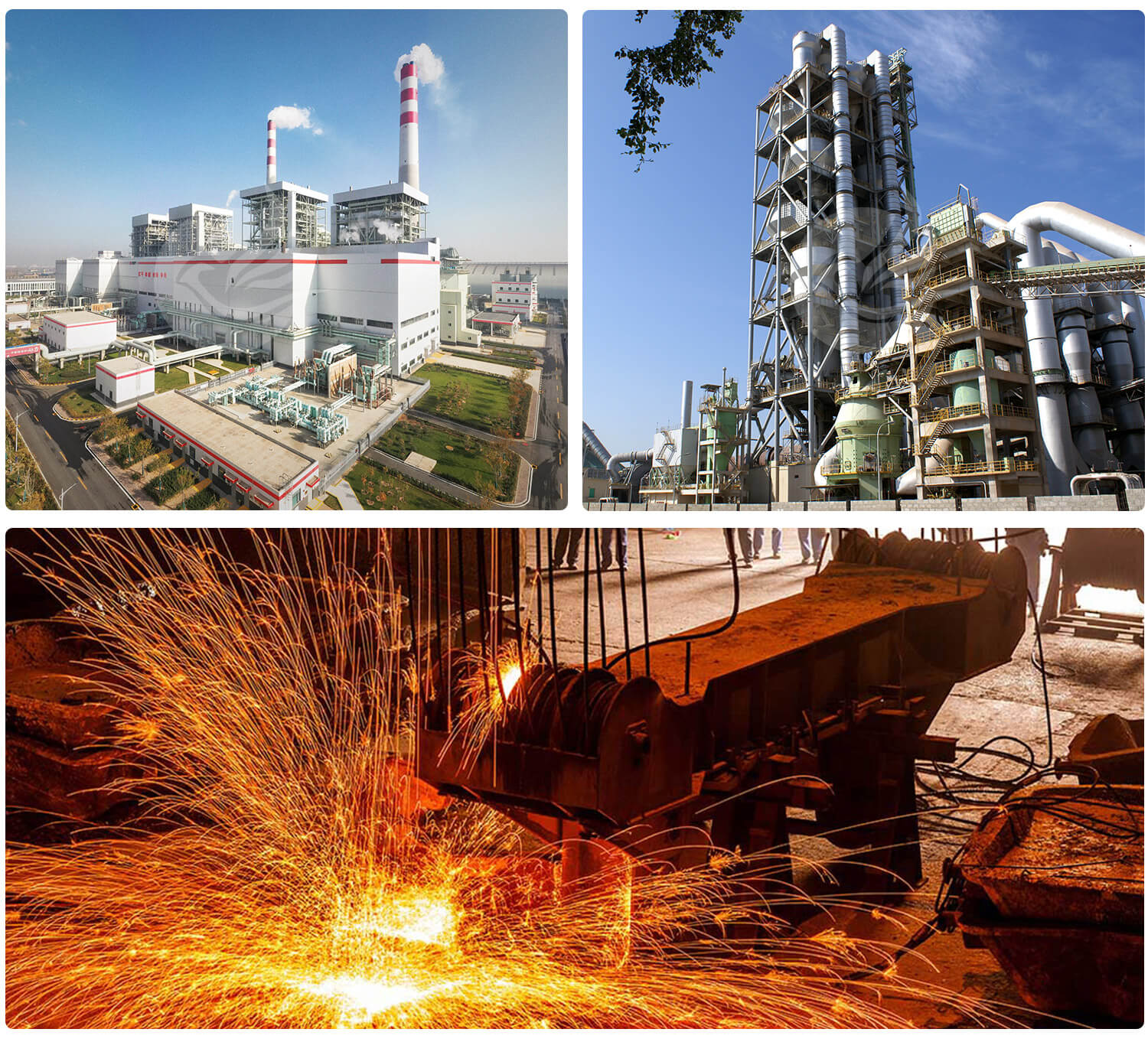

Application Areas

1.Cement industry: used for coal powder preparation to supply rotary kiln combustion.

2.Power industry: used for fuel preparation in coal-fired boilers at power plant.

3.Metallurgical industry: used for coal powder preparation in blast furnace injection.

application-6

Technical Parameters

Product Specification Production Capacity
（t/h）		 Cylinder Speed（r/min.） Driving Form Motor Reducer Weight
（T）		 Remark
Type Power（kw） Type Speed Ratio
Ø1.5*3 1.5-3 28.5 edge drive Y315M-8 75 ZD40 5 17.8 Excluding Main Drive
Ø1.7*2.5 3-5 24.5 edge drive Y315L-8 90 ZD40 5 21.7
Ø2.2*3 5-6 22 edge drive YR355M-8 185 ZD50 5 37
Ø2.2*4.4 8-9 22 edge drive YR355-6 220 ZD50 6.3 46
Ø2.4*4.75 14 20.4 edge drive YR400-8 280 ZD60 4.5 54
Ø2.4*(4+2) 10-12 20.2 edge drive YRKK450-8 250 ZDY355 4.5 59
Ø2.4*(4.5+2) 16-17 20.4 edge drive YR4005-8 280 JDX-450 4.5 76
Ø2.6*(4.8+2) 9-10 20 edge drive YRKK5002-8 400 RZD75 4.5 91
Ø2.6*(5.25+2.25) 13-14 19.7 edge drive YRKK500-8 400 ZDY400-4.5-11 4.5 98
Ø2.8*(5+3) 16-17 18.9 edge drive JRQ51-10 480 MCD-70 3.55 107
Ø3*9 18-20 18.3 edge drive YBKK560-8 630 MBY560 5 124
Ø3.2*9.5 28 17 edge drive YR800-8/1180 800 NFM710 6.3 140
Ø3.4*(5.25+2.8) 30 17.47 edge drive YRKK-56-6 900 JDX-800 7.157 169
Ø3.8*(7.25+3.5) 41-43 16.7 edge drive YR630-8 1400 MBY800 5.6 220
